Stationary Glass: BACKLITE: Removal: Notes
- Before proceeding with the following repair procedure, review all warnings and cautions. Refer to STATIONARY GLASS, WARNING .

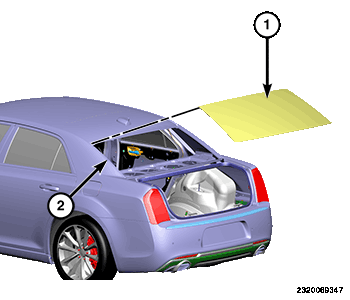

- Remove the trim panel from the rear shelf. Refer to PANEL, REAR SHELF, REMOVAL .
- Disconnect the wire connectors (1) from rear window defogger terminals and, rear window mounted radio antenna, if equipped.CAUTION:
Be careful not to damage painted surfaces when cutting urethane around the backlite.

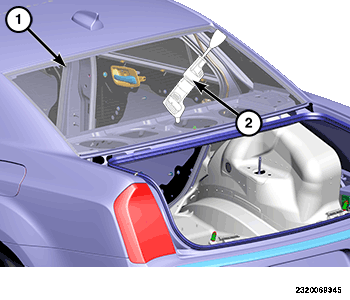

- Using an assistant and a windshield cut-out tool (1,), cut and separate the urethane adhesive securing the backlite to the backlite fence.
- Carefully remove the backlite (1) from the vehicle.
