Sunshade, Rear Window: Removal

Courtesy of CHRYSLER GROUP, LLC

Remove the rear shelf panel. Refer to PANEL, REAR SHELF, REMOVAL .

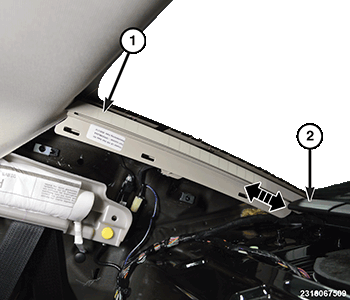

Using a trim stick or equivalent, release the retaining clips of the sunshade guide track (1), then pull upward and remove.

Courtesy of CHRYSLER GROUP, LLC

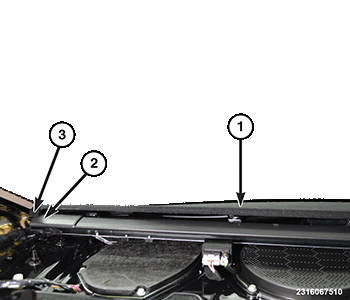

Using trim stick or equivalent, release the two center retaining clips of the sunshade trim cover (1).
Carefully lift the sunshade trim cover and disengage the end tabs (3) from the rear window sunshade (2) at both ends, then lift and remove the sunshade trim cover.

Courtesy of CHRYSLER GROUP, LLC

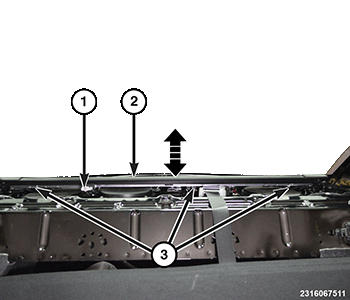

Disconnect the wire harness connector (1) from the rear window sunshade.
Remove the three screws (3) and lift the rear window sunshade (2) up and remove.
