Cladding, Body: Removal

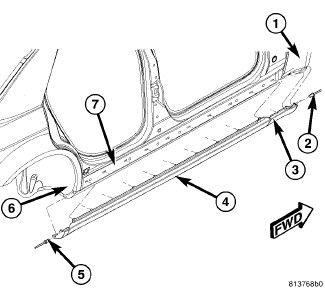

GC0080681Courtesy of CHRYSLER GROUP, LLC
  1. Raise and support the vehicle.
  2. Remove the wheels from the side of the vehicle being serviced. Refer to REMOVAL .
  3. Remove the pop rivets (2 and 5) from the front fender (1) and rear quarter panel (6).
  4. Remove the rear body side cladding (4) by disengaging the cladding retaining clips from the rocker panel (7).
  5. Remove the front body side cladding (3) by disengaging the retaining clip from the front fender.
