Spoiler, DECKLID: Removal

GC0144067Courtesy of CHRYSLER GROUP, LLC
  1. Open the vehicle trunk.
  2. Remove the decklid bumper (1). Repeat for the other side.
    GC0144091Courtesy of CHRYSLER GROUP, LLC
    NOTE:

    The manual trunk release handle must be routed through the deck lid insulator.

  3. Remove the push-in retainers (2) securing the deck lid insulator (1) to the decklid.

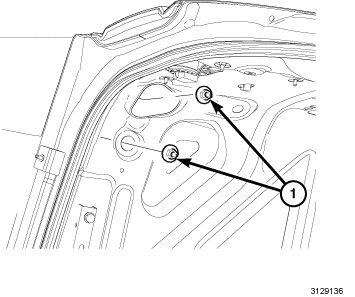

    GC0144699Courtesy of CHRYSLER GROUP, LLC
  4. Remove the spoiler nuts from spoiler studs through the access hole in the decklid. Repeat for the opposite side.

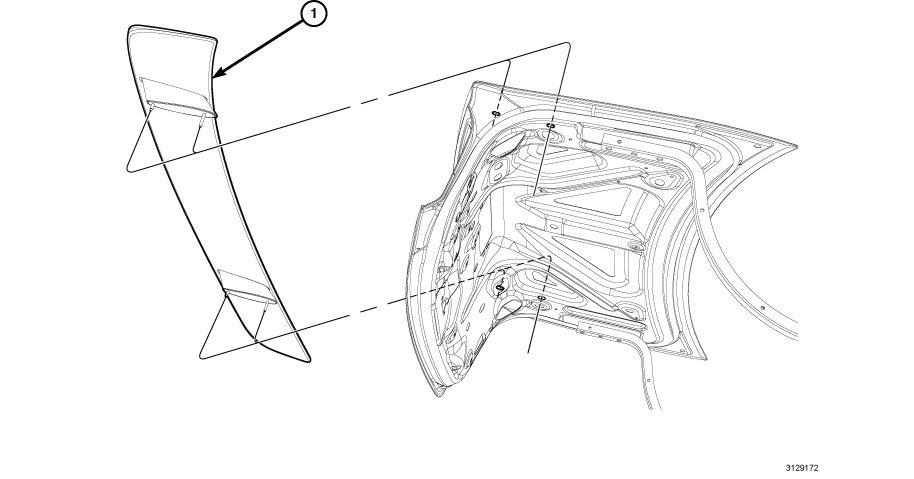

    GC0144700Courtesy of CHRYSLER GROUP, LLC
  5. Lower the decklid.
  6. Remove spoiler (1) from decklid by lifting straight up and rearward.
