Gap And Flush: Specifications

Courtesy of CHRYSLER GROUP, LLC

NOTE: All measurements are in millimeters.
O/F = Over Flush		U/F = Under Flush
U/D = Up/Down		F/A = Fore/Aft

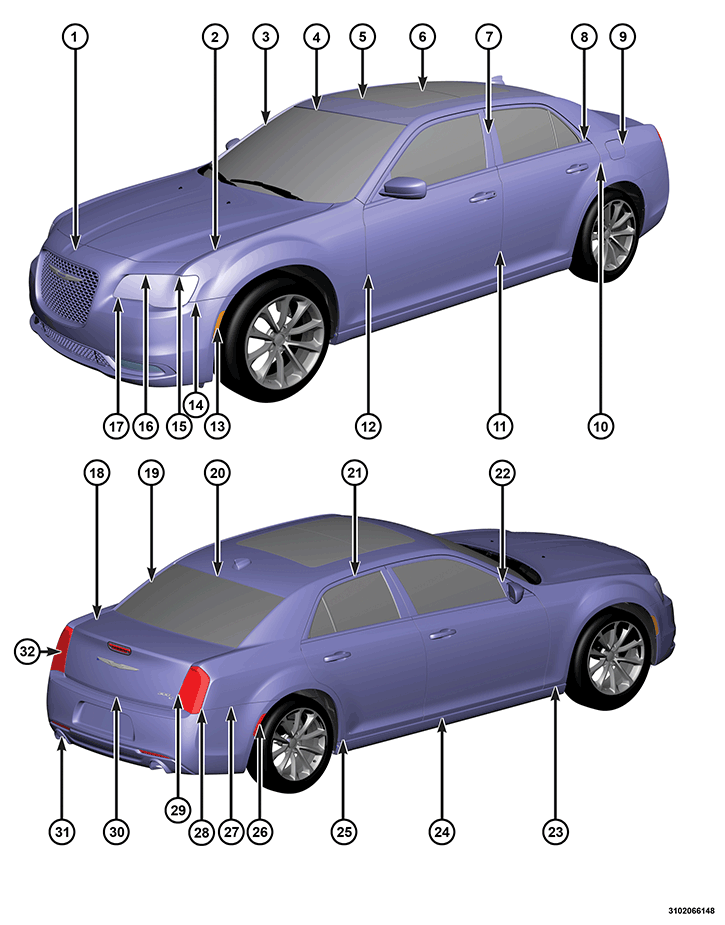

DIMENSION	DESCRIPTION	GAP	FLUSH	Alignment
1	Hood to Fascia	3.5+/- 1.5	Facia O/F 1.0 +/- 1.5	-
		Parallel within 1.5	Consistent within 1.5
2	Hood to Fender	3.5+/- 1.0	0.0+/- 1.5	At Rear 0.0+/- 1.5
		Parallel within 1.5	Consistent within 1.5	Side to side within 1.5
		Side to side within 1.5	Side to side within 1.5
3	Windshield to Body Side	Isolator: No Gap 0.0	-	-
		6.0 +/- 2.0
		Parallel within 2.0
		Side to side within 2.0
4	Windshield to Roof	Isolator: No Gap 0.0	Glass: U/F 2.7 +/- 1.5	-
		6.0 +/- 2.0	Consistent within 1.0
		Parallel within 2.0
5	Sunroof to Roof	4.0 +/- 1.5	Front Sunroof: U/F 0.0 +/- 2.5	-
			Rear Sunroof: O/F 0.0 +/- 2.5
6	Rear Sunroof Glass to Front Sunroof Glass (Dual Pane Only)	No Gap	Rear Glass: U/F 0.0 +/- 2.5	-
			Consistent within 1.5
7	Front Door Applique to Rear Door Applique	4.0 +/- 1.5	0.0 +/- 1.5	-
		Parallel within 1.5	Consistent within 1.0
8	Belt Molding to Rear Door Edge	-	-	Molding: Forward 0.5+/- 1.5
9	Fuel Filler Door to Body Side	Belt Molding: 3.0 +/- 1.0	Door: U/F 0.5 +/- 1.0	-
		Parallel within 1.0	Consistent within 1.0 (Excluding Bottom)
10	Rear Door to Body Side	4.0 +/- 1.0	0.0 +/- 1.0	At Feature Line 0.0 +/- 1.5
		Parallel within 1.5	Consistent within 1.5 (Excluding Rear Flare Area)
11	Front Door to Rear Door	4.0 +/- 1.0	Front Door (Above Feature Line) O/F 0.0 to 0.8 +/- 1.0	At Feature Line 0.0 +/- 1.5
		Parallel within 1.5	Front Door (Below Feature Line) O/F 0.8 +/- 1.0
			Consistent within 1.5
12	Fender to Front Door	4.0 +/- 1.0	Fender O/F 0.8 +/- 1.0	At Feature Line 0.0 +/- 1.5
		Parallel within 1.0 (Exclude Above Feature Line	Consistent within 1.5
13	Side Marker Light to Front Wheelhouse Splash Shield	2.0 +/- 1.0	Light O/F 0.1 +/- 0.5	-
14	Fascia to Fender	Net to 0.8	0.0 +/- 1.0	At Wheelhouse 0.0 +/- 1.0
			Consistent within 1.0	At Headlight: Top Fascia 0.8 +/- 1.0
				At Headlight: Side Fascia O/F 0.7 +/- 1.0
15	Headlight to Fender	2.0 +/- 1.2	Headlight 2.2 U/F at top inboard to 1.0 U/F top outboard to 1.3 to 0.4 at bottom +/- 1.2	-
		Parallel within 1.2
		Side to side within 1.2
16	Headlight to Fascia (at Top)	2.0 +/- 1.6	Headlight (at Top): U/F 1.7 +/- 1.0	-
		Parallel within 1.6	Consistent within 1.0
		Side to side within 1.6
17	Headlight to Fascia (at Inboard and Bottom)	2.0+/- 1.6	-	-
		Parallel within 1.6
		Side to side within 1.6
18	Decklid to Body Side	3.5 +/- 1.0	Decklid U/F 0.8 +/- 1.5	-
		Parallel within 1.0	Side to side within 1.5
		Side to side within 1.5
19	Backlight to Body Side	5.0 +/- 2.0		-
		Parallel within 1.5
		Side to side within 1.5
20	Backlight to Roof	6.0 +/- 2.0	Roof O/F 2.0 +/- 2.0	-
		Parallel within 2.0	Consistent within 1.0
21	Door Lip Opening to Body Side	5.4 +/- 1.5	Bodyside 0/F 3.0 +/- 1.5	-
		Parallel within 1.5	Consistent within 1.5
22	Mirror Flag to Door Lip Opening Molding	2.0 +/- 1.3	0.0 +/- 1.3	-
23	Sill Molding to Fender	2.0 +/- 2.0	Sill O/F 6.0 +/- 2.0	-
		Parallel within 1.0
24	Front and Rear Doors to Sill	6.0 +/- 2.0	Sill O/F 6.0 +/- 2.0	-
		Parallel within 2.0	Consistent within 2.0
25	Body Side to Sill	3.0 +/- 2.0	Sill O/F 6.0 +/- 2.0	-
26	Side Marker Light to Rear Wheelhouse Splash Shield	Cross Car 2.5 +/- 1.0	Light O/F 0.1+/- 0.5	-
27	Fascia to Body Side	0.0 to 0.8	0.0 +/- 1.0	At Wheelhouse: Facia O/F 2.0 +/- 1.0
			Consistent within 1.0	At Lamp: 0.0 +/- 1.0
28	Taillamp to Body Side	1.5 +/- 1.0	Taillamp 1.0 U/F at top to 0.3 at corner to 0.7 at bottom	0.0 +/- 1.0
		Parallel within 1.0	Consistent within 1.0
		Side to side within 1.0
29	Taillamp to Decklid	3.5 +/- 1.5	Taillamp O/F 0.2 Transition at top to 2.3 +/-1.5	-
		Parallel within 1.5	Side to side within 1.5
		Side to side within 1.5
30	Decklid to Fascia	U/D 6.5 +/- 1.5	-	-
		Parallel within 1.5
		Cross Car 4.0 (at Top) Transition to 6.5 U/D at bottom +/-1.5
		Side to side within 1.5
31	Exhaust Tip to Rear Valance	U/D 16.2 +/- 3.0 at Center Top	Tip O/F 7.0 +/- 3.0 at Center Top	-
	SRT only (not shown)	Cross Car 16.5 +/- 3.0	Side to side within 3.0

32	Taillamp to Rear Fascia	1.5 +/- 1.5	0.0 at inboard to Taillamp 1.0 U/F at Side to 0.8 at Top +/- 1.5	0.0 +/- 1.0
		Parallel within 1.5	Consistent within 1.5
		Side to side within 1.5
