Seat Cushion: Removal

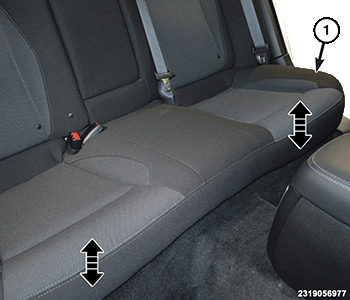

GC0170621Courtesy of CHRYSLER GROUP, LLC
  1. Pull upward at the front edge of the rear seat cushion (1) to release it from the two seat cushion retainers.
  2. Lift up and forward and remove all electrical connectors, (if equipped).
  3. Remove the seat cushion.
