Panel, Rear Door Trim: Removal

Courtesy of CHRYSLER GROUP, LLC

Disconnect and isolate the battery negative cable.
Using a small pick tool, pull out on interior latch handle and remove the trim plate (1).

Courtesy of CHRYSLER GROUP, LLC
Pull out on interior latch handle and remove the screw (1).

Courtesy of CHRYSLER GROUP, LLC
Using a small pick tool, remove the trim plate (1) just behind the armrest.

Courtesy of CHRYSLER GROUP, LLC
Remove and disconnect the power window switch. Refer to REMOVAL .
Remove the screw (1) just behind the armrest.

Courtesy of CHRYSLER GROUP, LLC
Using trim stick (special tool #C-4755, Trim Stick) or equivalent, disengage the door trim snap retainers (2).
Raise the trim panel (3) up and peel the belt molding off from the flange.Do not fully remove at this time.

Courtesy of CHRYSLER GROUP, LLC
Disconnect the map light harness (1).

Courtesy of CHRYSLER GROUP, LLC

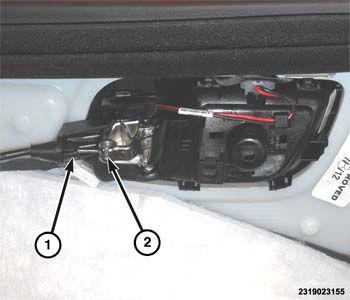

With the use of pliers or equivalent, press the tabs (1) inward and pull the inner handle release cable rearward.
Remove the cable barrel (2) from the interior handle.
Remove the door trim panel.
If necessary, use a flat bladed screwdriver to disengage the belt molding clips (1) from the trim panel.
