Body - Interior & Exterior: Exterior: Grille: Removal

Courtesy of CHRYSLER GROUP, LLC

CAUTION:

Take the proper precautions to protect the face of the front fascia from cosmetic damage.

Remove the front fascia (1) and place it on a workbench. Refer to FASCIA, FRONT, REMOVAL .

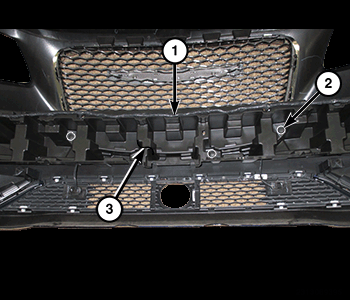

Remove the push-pin fasteners (2) and separate the wire harness (1) from the energy absorber (3).

Courtesy of CHRYSLER GROUP, LLC

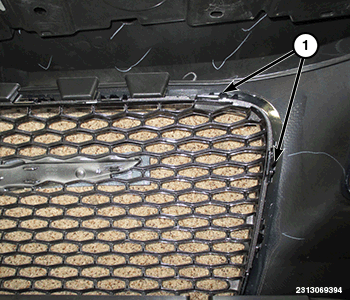

Release the tabs (1) and remove the grille from the front fascia.
