Seat, Rear: Description: Description
NOTE:
Rear seat back and cushions are serviced as an assembly.

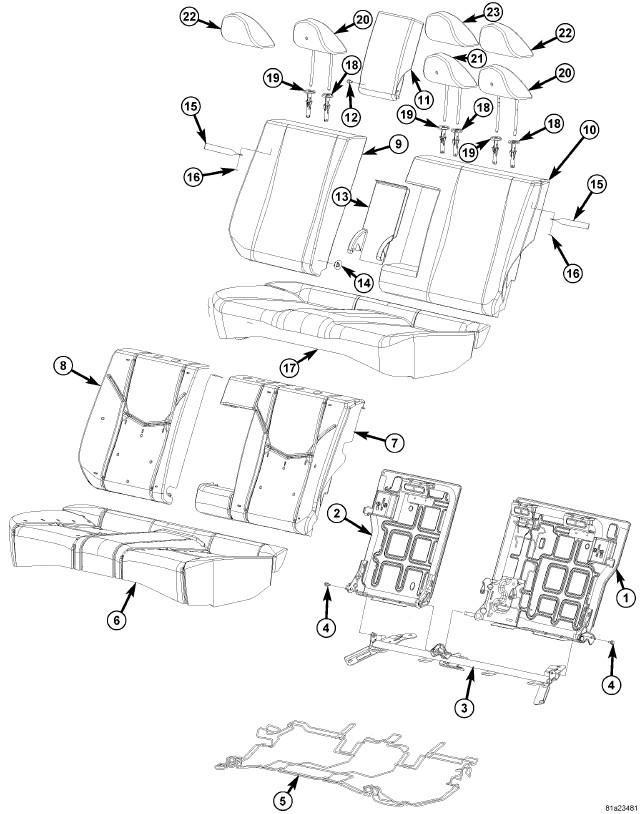

REAR SEAT BREAKDOWN
| 1 - Seat Back Frame 40% | 13 - Armrest Plastic Closeout |
| 2 - Seat Back Frame 60% | 14 - Plastic Bushing Inboard Pivot |
| 3 - Crossbar Assembly | 15 - Pull Strap |
| 4 - Bolt | 16 - Washer |
| 5 - Cushion Wire Frame | 17 - Rear Seat Cushion Cover |
| 6 - Rear Seat Cushion Foam | 18 - Guide Sleeve Live |
| 7 - Back Seat Foam 40% | 19 - Guide Sleeve Slave |
| 8 - Back Seat Foam 60% | 20 - Rear Lateral Headrest Cover (Foam And Rod) |
| 9 - Rear Seat Back 40% Cover | 21 - Rear Central Headrest Cover (Foam And Rod) |
| 10 - Rear Seat Back 60% Cover | 22 - Rear Lateral Headrest Cover |
| 11 - Armrest With Cupholder | 23 - Read Central Headrest Cover |
| 12 - Shoulder Bolt | |
