Bumper, DECKLID Alignment: Removal: Removal

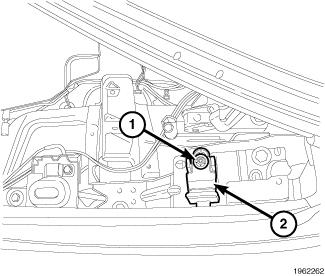

Fig 1: Decklid Alignment Bumper & Fastener
GC0122847Courtesy of CHRYSLER GROUP, LLC
  1. Place the decklid in the service position. Refer to STANDARD PROCEDURE .
  2. Remove the rear and side trunk trim panels. Refer to PANEL, TRUNK TRIM, REMOVAL .
  3. Remove the alignment bumper mounting fastener (1).
  4. Remove the bumper (2) from the deckbar latch bracket.
