Switch, Parking Brake: Removal: Removal

WARNING:

To avoid serious or fatal injury on vehicles equipped with airbags, disable the Supplemental Restraint System (SRS) before attempting any steering wheel, steering column, airbag, seat belt tensioner, impact sensor or instrument panel component diagnosis or service. Disconnect and isolate the battery negative (ground) cable, then wait two minutes for the system capacitor to discharge before performing further diagnosis or service. This is the only sure way to disable the SRS. Failure to take the proper precautions could result in accidental airbag deployment.

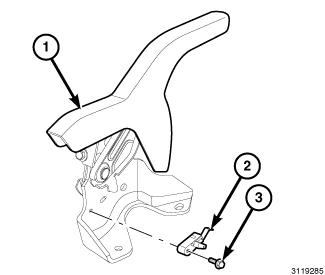

Fig 1: Parking Brake Lever & Park Brake Switch

Courtesy of CHRYSLER GROUP, LLC

Disconnect and isolate the battery negative cable.
Remove the console from the floor panel. Refer to CONSOLE, CENTER, REMOVAL .
Pull the parking brake lever (1) upward to apply the parking brake.
Disconnect the wire harness connector from the terminal of the park brake switch (2) located on the right side of the park brake lever mechanism.
Remove the screw (3) that secures the switch to the park brake lever bracket.
Remove the switch from the park brake lever bracket.
