Headlamp Alignment

NOTE:

Due to the linear nature of the headlamp cutoff, a properly aimed low beam headlamp will project the top edge of the high intensity pattern on the alignment screen just below the horizontal line to 50 millimeters (2 inches) below the horizontal line for domestic market vehicles. No horizontal (right/left) adjustment is required for this headlamp beam pattern in domestic market vehicles. The high beam pattern will be correct when the low beams are properly aimed.

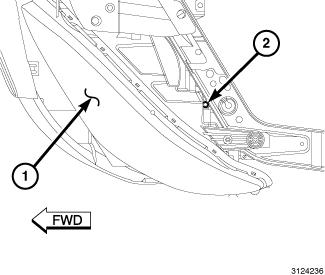

Fig 1: Headlamp Alignment (Chrysler)

Courtesy of CHRYSLER GROUP, LLC

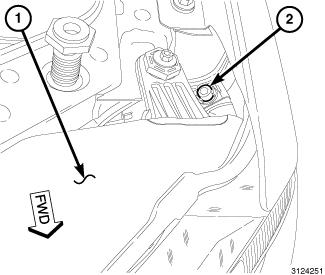

Fig 2: Headlamp Alignment (Dodge)

Courtesy of CHRYSLER GROUP, LLC

Turn the headlamps ON and select the LOW beams.
NOTE:
On Chrysler models, a screwdriver is inserted through a guide loop molded into the back of the front lamp unit housing to assist in directing the screwdriver blade to the adjustment screw.
Use a screwdriver to rotate the headlamp vertical adjustment screw (2) on each front lamp unit (1) to adjust the beam height as required.
