Lamp, License Plate: Removal: Lamp: CHRYSLER

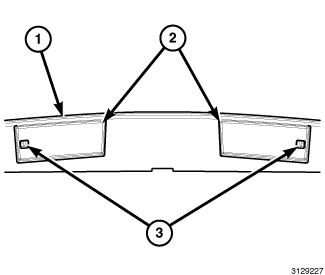

Fig 1: Latch Tab, License Plate Lamp & Light Bar Unit

Courtesy of CHRYSLER GROUP, LLC

1. Disconnect and isolate the battery negative cable.
2. Push the latch tab (3) on the outboard end of the license plate lamp (2) toward the center of the deck lid handle and light bar unit (1).
3. While holding the latch tab depressed, pull the outboard end of the lamp down out of the mounting hole in the handle and light bar unit far enough to disengage the inboard end of the lamp from the mounting hole.
4. Firmly grasp the bulb socket on the top of the lamp housing and rotate it counterclockwise about 30 degrees to unlock it.
5. Pull the socket and bulb straight out of the lamp housing.
6. Remove the lamp lens and housing from the vehicle.
