200 & Avenger

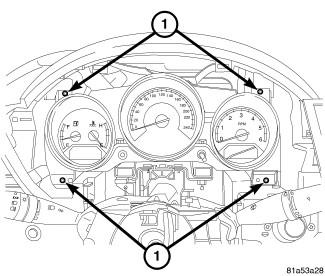

Fig 1: Cluster Bezel From Cluster

Courtesy of CHRYSLER GROUP, LLC

Install the cluster bezel onto the cluster by installing the four retaining screws (1).
Position the cluster in the instrument panel opening.
Connect the four electrical connectors.
Push instrument cluster forward.

Fig 2: Removing/Installing Cluster
Courtesy of CHRYSLER GROUP, LLC
Install the upper retaining screws (1) to the instrument cluster.
NOTE:
Dodge Avenger models are only equipped with two upper retainers.
Install drivers surround bezel. Refer to BEZEL, INSTRUMENT PANEL, CENTER, INSTALLATION and BEZEL, INSTRUMENT PANEL, CONSOLE, INSTALLATION .
Connect the battery negative cable.
