DECKLID, Sedan: Removal: Removal

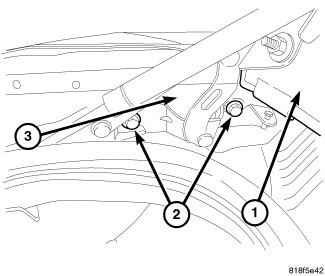

Fig 1: Hinge To Body
GC0122914Courtesy of CHRYSLER GROUP, LLC
  1. Release decklid latch and open decklid.
  2. Mark outline of hinge on decklid (1).
  3. Disconnect all wire connectors from decklid latch and disconnect wire harness from decklid.
  4. With the help of an assistant, remove nuts attaching decklid (1) to decklid hinge (3).
  5. Remove decklid (1) from vehicle.
