DECKLID, Convertible: Removal: Removal

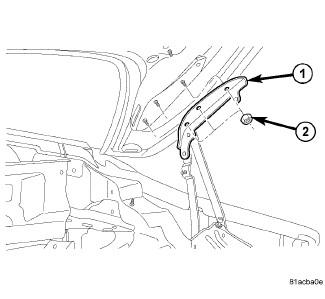

Fig 1: Decklid Pivot Hinge
GC0122913Courtesy of CHRYSLER GROUP, LLC
  1. Disconnect and isolate the battery negative remote cable.
  2. Open the decklid conventionally.
  3. Disconnect all wiring from the underside of the decklid.
  4. Unclip all the wiring from the decklid.
  5. With the help of an assistant, remove the three nuts (2) on each hinge (1).
  6. Remove decklid.
