Throttle Body (D6701)

Harness-Family: Engine

Color: BLACK

Gender: FEMALE

Part Number: 7219-1764-30

Part Description: MQS SOCKET HOUSING SWS, 6P ASSEMBLY

Connector No: D6701

Option: ~~

Repair Kit Part Number: 68018956AA

Cavity Count: 6

Fig 1: Throttle Body Connector End View
GCWD1006446Courtesy of CHRYSLER

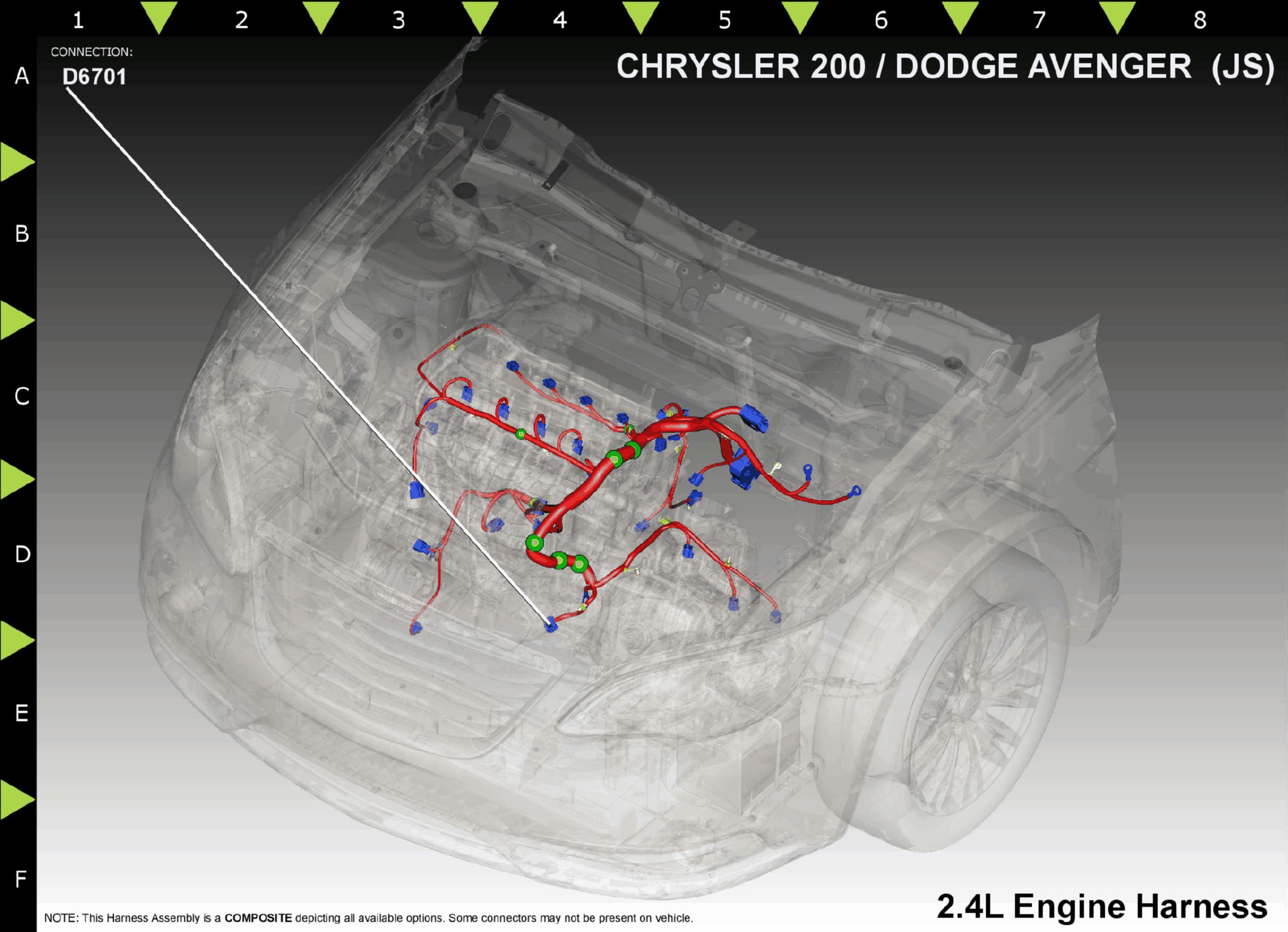

Fig 2: Throttle Body Component Location
GCWD1205741Courtesy of CHRYSLER
Pin Circuit Wire Color Gauge/Size Function Option
1 K124 DB/GY 20 ETC MOTOR (+) N/A
2 K922 BR/DB 20 TP SENSOR RETURN N/A
2 K126 DB/LG 20 ETC MOTOR (-) N/A
3 F855 PK/YL 20 5 VOLT SUPPLY N/A
3 K122 BR/DG 20 TP 2 SIGNAL N/A
4 K126 DB/LG 20 ETC MOTOR (-) N/A
4 F855 PK/YL 20 5 VOLT SUPPLY N/A
5 K22 BR/OR 20 TP 1 SIGNAL N/A
6 K122 BR/DG 20 TP 2 SIGNAL N/A
6 K922 BR/DB 20 TP SENSOR RETURN N/A
(1) Pins not listed are not used for this connector
