TIPM C5 (D3830E)

Harness-Family: HDLP_Dash

Color: BLUE

Gender: FEMALE

Part Number: 7283-9068-90

Part Description: KAIZEN SUB ASSEMBLY (KEYWAY OPTION E)

Connector No: D3830E

Option: ~~

Repair Kit Part Number: 68030130AA

Cavity Count: 14

Fig 1: TIPM C5 Connector End View
GCWD1006329Courtesy of CHRYSLER

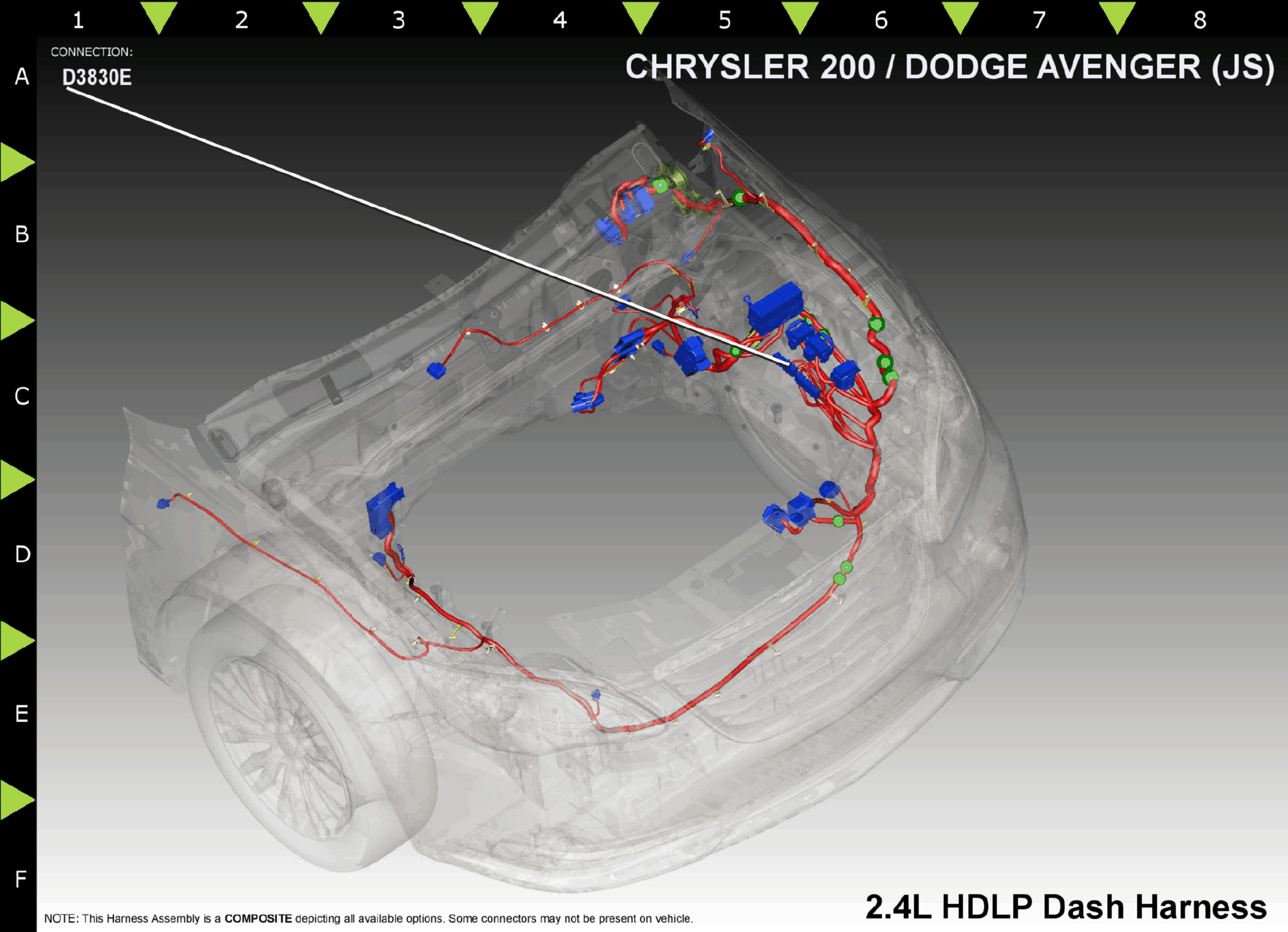

Fig 2: TIPM C5 Component Location
GCWD1206142Courtesy of CHRYSLER
Pin Circuit Wire Color Gauge/Size Function Option
1 L70 WT/GY 20 FUSED PARK LAMP FEED N/A
2 L162 WT/BR 20 RIGHT SIDE REPEATER LAMP CONTROL OUTPUT N/A
3 L44 WT/TN 20 RIGHT LOW BEAM DRIVER N/A
4 L33 WT/PK 20 LEFT HIGH BEAM DRIVER N/A
5 L163 WT/VT 20 LEFT SIDE REPEATER LAMP CONTROL OUTPUT N/A
6 L7 WT/YL 20 PARK LAMP RELAY OUTPUT N/A
7 C818 LB/OR 20 A/C PRESSURE 5 VOLT SUPPLY N/A
12 C18 LB/BR 20 A/C PRESSURE SIGNAL N/A
13 C918 BK/LB 20 A/C PRESSURE RETURN N/A
(1) Pins not listed are not used for this connector
