Starter-Eyelet-A (D6637A)

Harness-Family: Engine

Color: BLACK

Gender: FEMALE

Part Number: 520961-1

Part Description: INSL

Connector No: D6637A

Option: ~~

Repair Kit Part Number: 05019927AA

Cavity Count: 1

Fig 1: Starter-Eyelet-A Connector End View

GCWD1006399

Courtesy of CHRYSLER

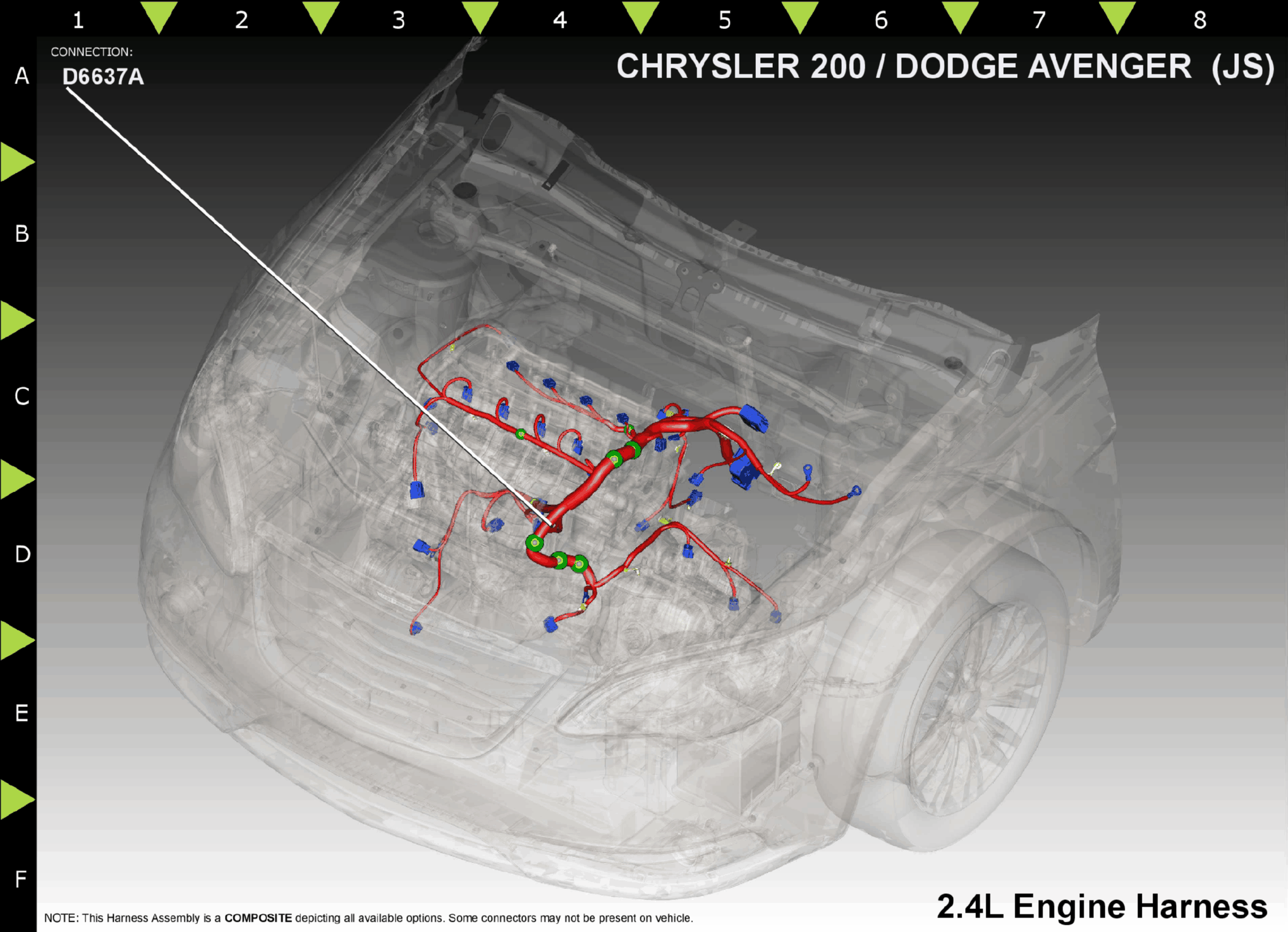

Fig 2: Starter-Eyelet-A Component Location

GCWD1205998

Courtesy of CHRYSLER

Pin

Circuit

Wire Color

Gauge/Size

Function

Option

1

T750

YL/GY

16

STARTER RELAY OUTPUT

N/A

⁽¹⁾	Pins not listed are not used for this connector
