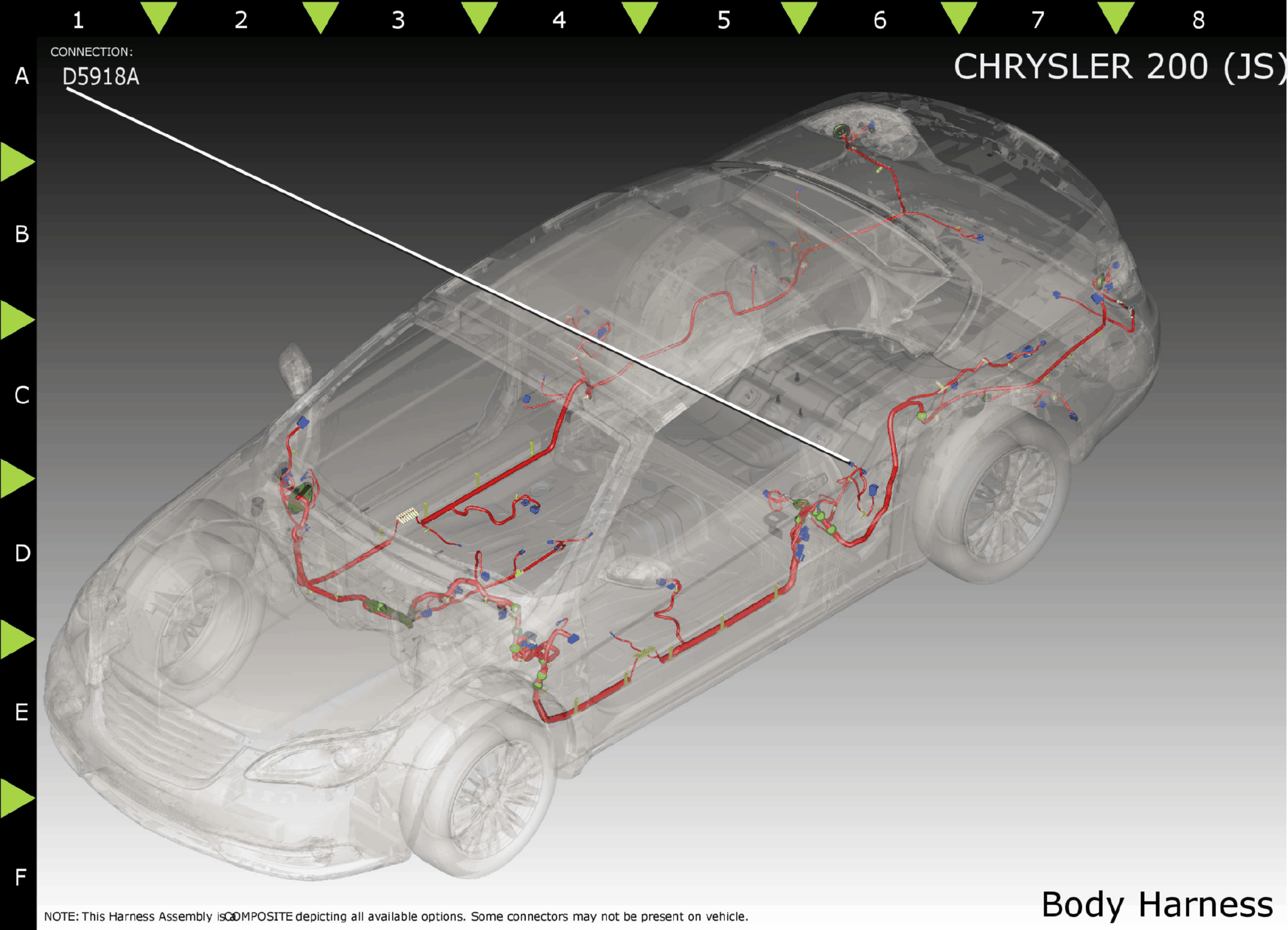

Speaker-Left Rear (D5918A)
Harness-Family: Unibody
Color: WHITE
Gender: FEMALE
Part Number: 174921-1
Part Description: 070 SERIES MULTILOCK CONNECTOR PLUG HSG
Connector No: D5918A
Option: ~~
Repair Kit Part Number: 68040489AA
Cavity Count: 3
| Pin | Circuit | Wire Color | Gauge/Size | Function | Option | ||
|---|---|---|---|---|---|---|---|
| 1 | X393 | DG/GY | 18 | AMPLIFIED LEFT REAR SPEAKER (-) | JS41 | ||
| 1 | X303 | DG/TN | 18 | AMPLIFIED LEFT REAR SPEAKER (+) | JS27 | ||
| 3 | X393 | DG/GY | 18 | AMPLIFIED LEFT REAR SPEAKER (-) | JS27 | ||
| 3 | X303 | DG/TN | 18 | AMPLIFIED LEFT REAR SPEAKER (+) | JS41 | ||
|
|||||||
