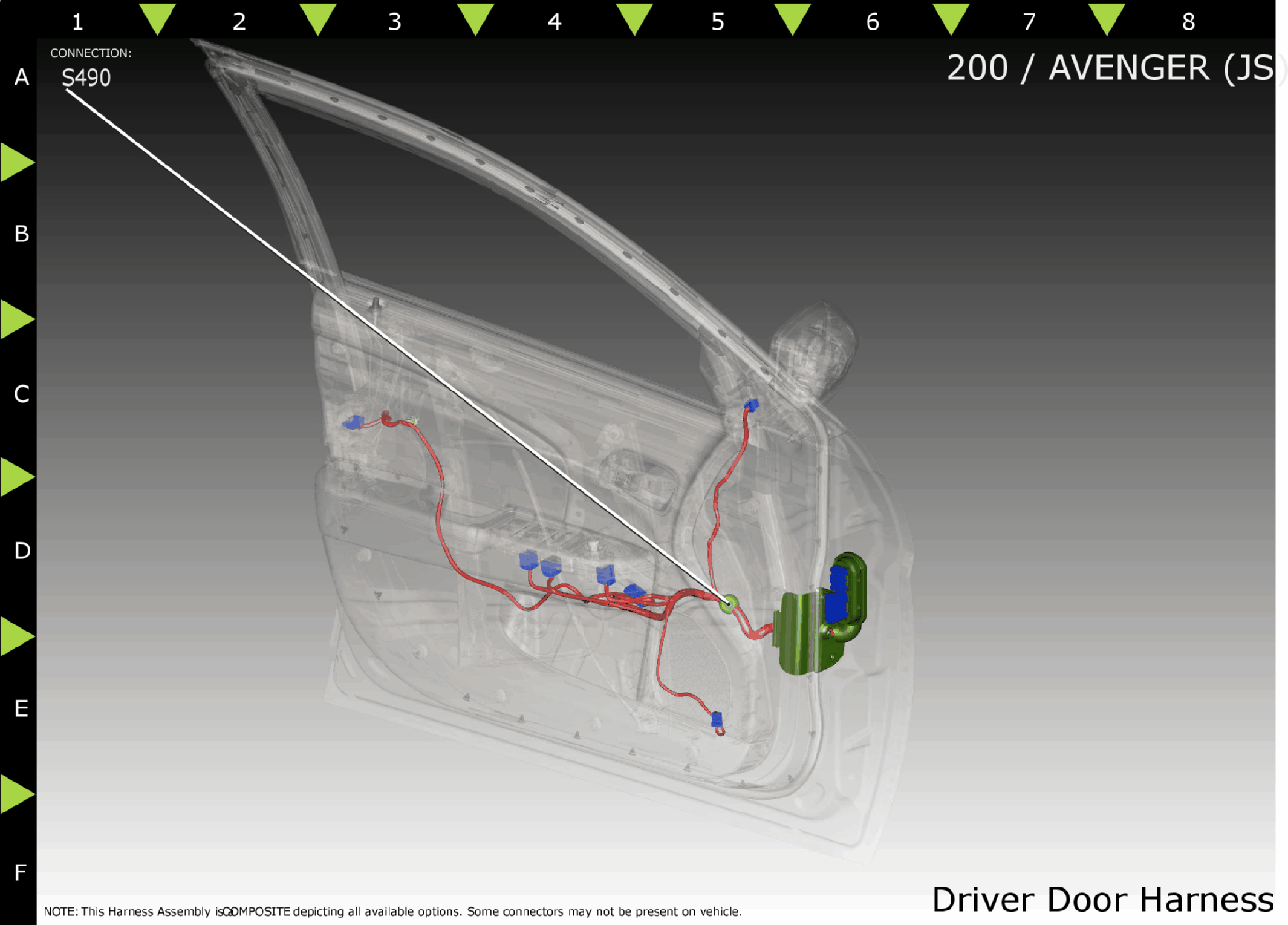

S369 (S490)
Harness-Family: Door_Driver
Color: ~~
Gender: MALE
Part Number: NA
Part Description: Not Available
Connector No: S490
Option: ~~
Repair Kit Part Number: Not Available
Cavity Count:
| Pin | Circuit | Wire Color | Gauge/Size | Function | Option | ||
|---|---|---|---|---|---|---|---|
| 1 | Z908 | BK | 14 | GROUND | N/A | ||
| 2 | Z908 | BK | 20 | GROUND | N/A | ||
| 3 | Z908 | BK | 20 | GROUND | N/A | ||
| 4 | Z908 | BK | 20 | GROUND | N/A | ||
| 5 | Z908 | BK | 14 | GROUND | N/A | ||
| 6 | Z908 | BK | 14 | GROUND | N/A | ||
| 7 | Z908 | BK | 14 | GROUND | N/A | ||
| 8 | Z908 | BK | 20 | GROUND | N/A | ||
| 9 | Z908 | BK | 14 | GROUND | N/A | ||
| 10 | Z908 | BK | 20 | GROUND | N/A | ||
|
|||||||
