S125 (S1325)

Harness-Family: HDLP_Dash

Color: ~~

Gender: MALE

Part Number: NA

Part Description: Not Available

Connector No: S1325

Option: ~~

Repair Kit Part Number: Not Available

Cavity Count:

Fig 1: S125 Connector End View

GCWD1006457

Courtesy of CHRYSLER

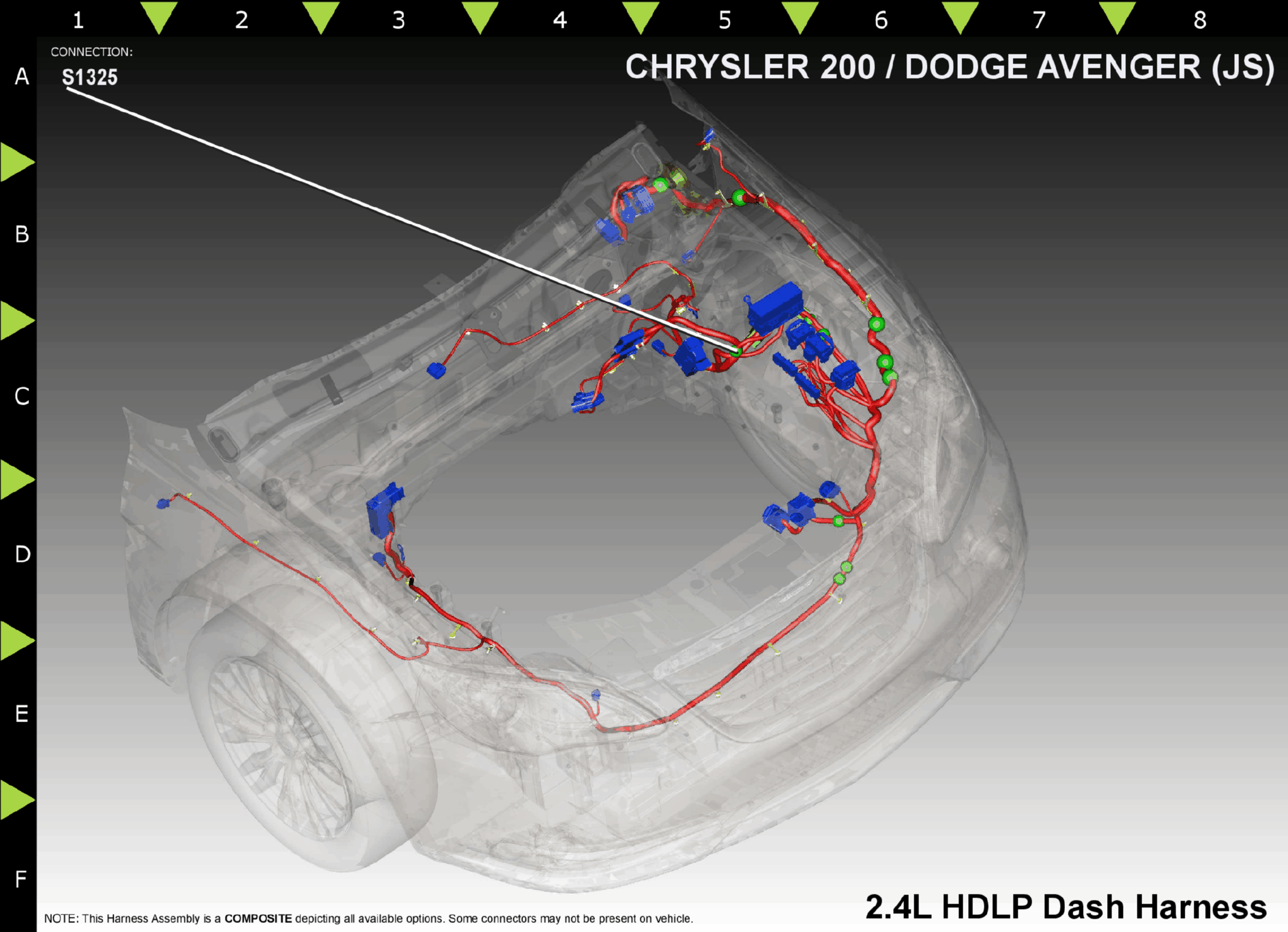

Fig 2: S125 Component Location

GCWD1205854

Courtesy of CHRYSLER

Pin

Circuit

Wire Color

Gauge/Size

Function

Option

1

N24

DG

10

HIGH SPEED RAD FAN CONTROL

N/A

2

N24

DG

10

HIGH SPEED RAD FAN CONTROL

N/A

3

N24

DG

10

HIGH SPEED RAD FAN CONTROL

N/A

⁽¹⁾	Pins not listed are not used for this connector
