Relay-PZEV Air Pump (R0136F)

Harness-Family: Exhaust_System_Jumper

Color: BLACK

Gender: FEMALE

Part Number: 12065686

Part Description: 5-WAY RELAY INSULATOR

Connector No: R0136F

Option: Standard

Repair Kit Part Number: 68142156AA

Cavity Count: 5

Fig 1: Relay-PZEV Air Pump Connector End View

GCWD1025463

Courtesy of CHRYSLER

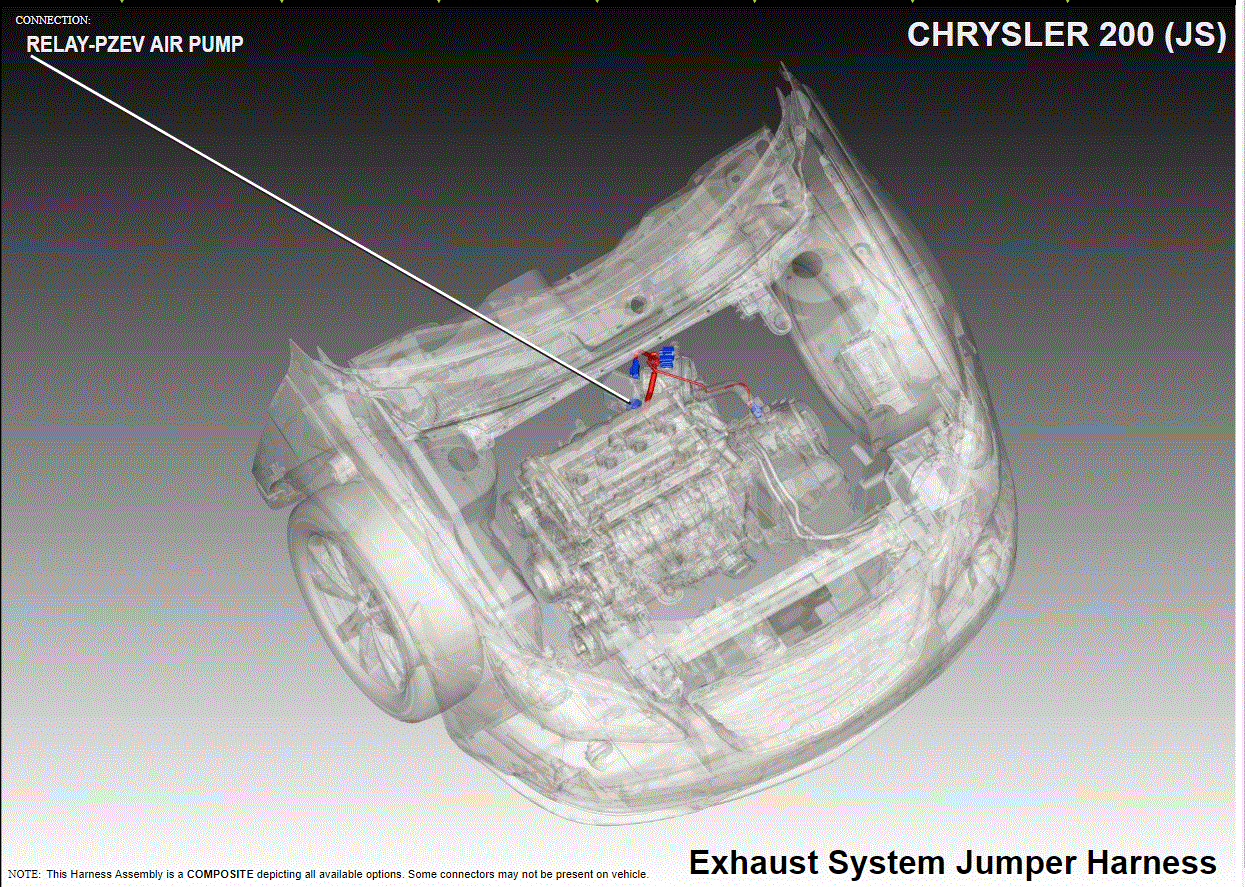

Fig 2: Relay-PZEV Air Pump Component Location

G00565855

Courtesy of CHRYSLER

Pin

Circuit

Wire Color

Gauge/Size

Function

Option

30

A929

RD

10

FUSED B(+)

N/A

85

K644

BR/OR

22

SECONDARY AIR PUMP CONTROL

N/A

86

F202

BR/WT

16

IGNITION RUN/START CONTROL OUTPUT

N/A

87

A961

LB/WT

12

FUSED B(+)

N/A

⁽¹⁾	Pins not listed are not used for this connector
