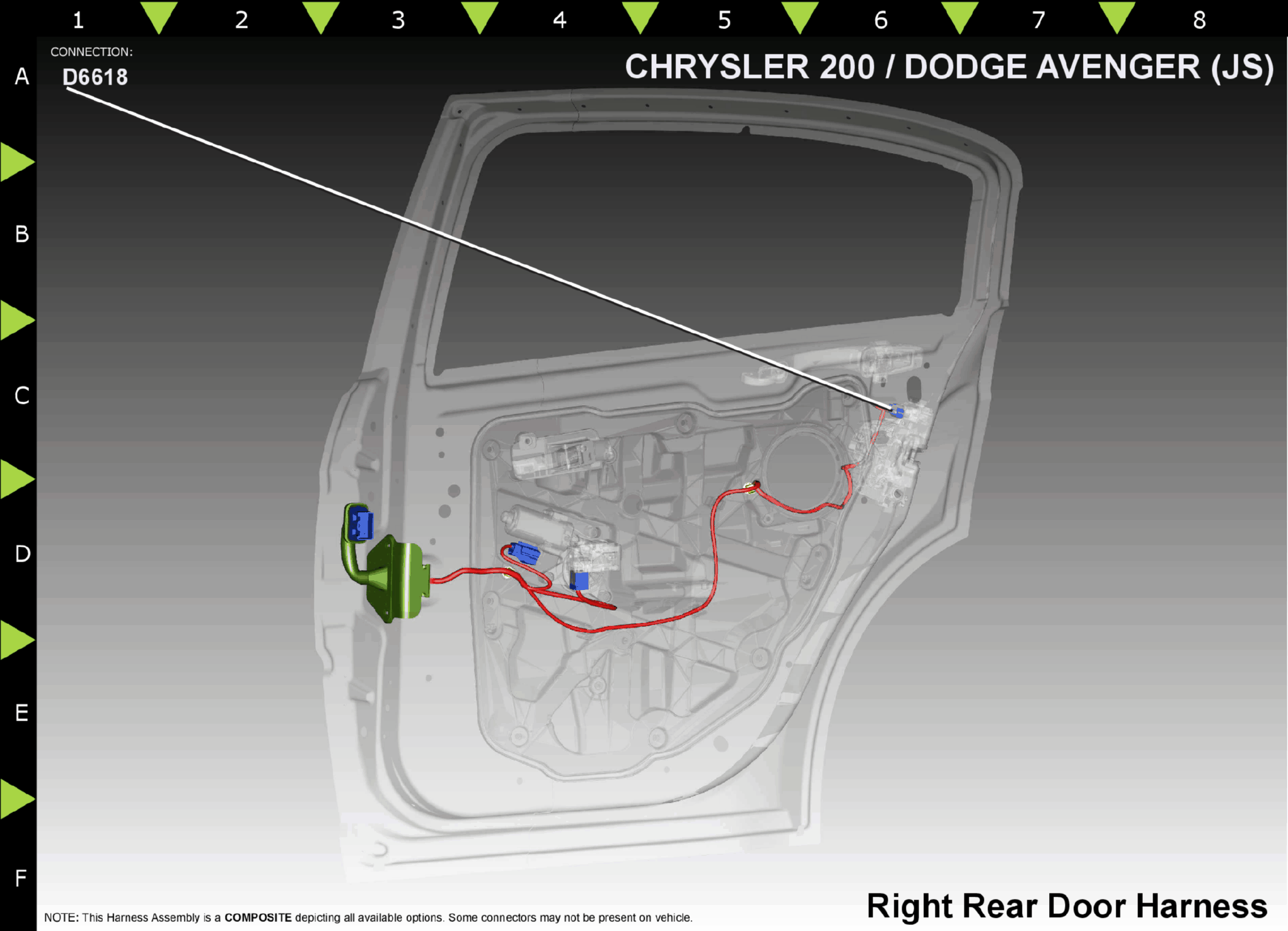

Latch-Door-Right Rear (D6618)
Harness-Family: Door_Right_Rear
Color: BLACK
Gender: FEMALE
Part Number: 34511-1011
Part Description: CONNECTOR ASSEMBLY, 1.2MM 4CKT SEALED
Connector No: D6618
Option: ~~
Repair Kit Part Number: Not Available
Cavity Count: 4
| Pin | Circuit | Wire Color | Gauge/Size | Function | Option | ||
|---|---|---|---|---|---|---|---|
| 1 | P240 | TN/WT | 20 | PASSENGER DOOR UNLOCK DRIVER | N/A | ||
| 2 | P33 | TN/DB | 20 | DOOR LOCK DRIVER | N/A | ||
| 3 | G76 | VT/GY | 22 | RIGHT REAR DOOR AJAR SWITCH SENSE | N/A | ||
| 4 | Z915 | BK | 20 | GROUND | N/A | ||
|
|||||||
