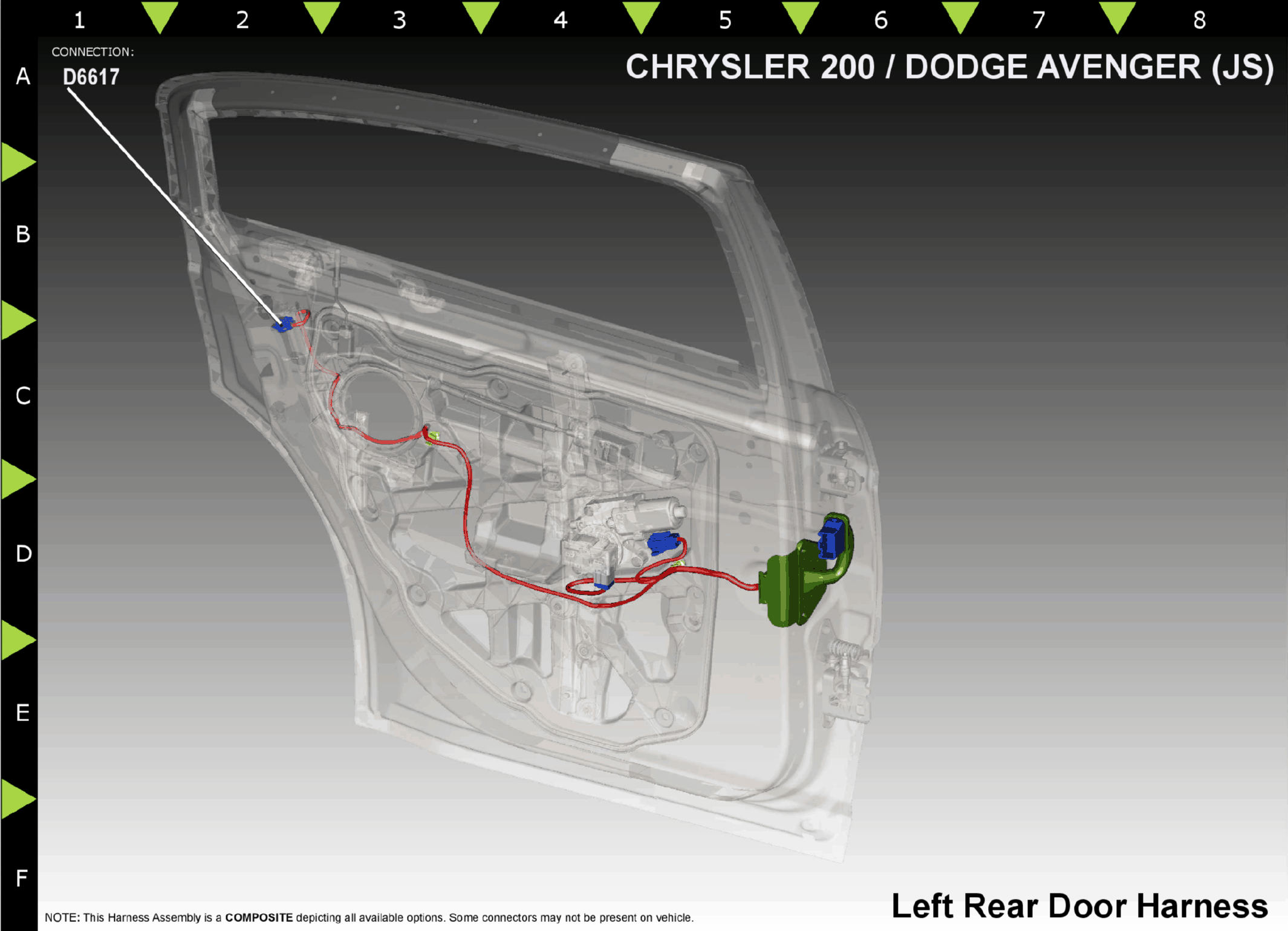

Latch-Door-Left Rear (D6617)
Harness-Family: Door_Left_Rear
Color: BLACK
Gender: FEMALE
Part Number: 34511-1001
Part Description: CONNECTOR ASSEMBLY, 1.2MM 4CKT SEALED
Connector No: D6617
Option: ~~
Repair Kit Part Number: Not Available
Cavity Count: 4
| Pin | Circuit | Wire Color | Gauge/Size | Function | Option | ||
|---|---|---|---|---|---|---|---|
| 1 | P240 | TN/WT | 20 | PASSENGER DOOR UNLOCK DRIVER | N/A | ||
| 2 | P33 | TN/DB | 20 | DOOR LOCK DRIVER | N/A | ||
| 3 | G77 | VT/GY | 22 | LEFT REAR DOOR AJAR SWITCH SENSE | N/A | ||
| 4 | Z914 | BK | 20 | GROUND | N/A | ||
|
|||||||
