Lamp-Center High Mounted Stop C1 (D4509A)

Harness-Family: Unibody

Color: BLACK

Gender: FEMALE

Part Number: 1507

Part Description: INSULATOR

Connector No: D4509A

Option: ~~

Repair Kit Part Number: Not Available

Cavity Count: 2

Fig 1: Lamp-Center High Mounted Stop C1 Connector End View

Courtesy of CHRYSLER

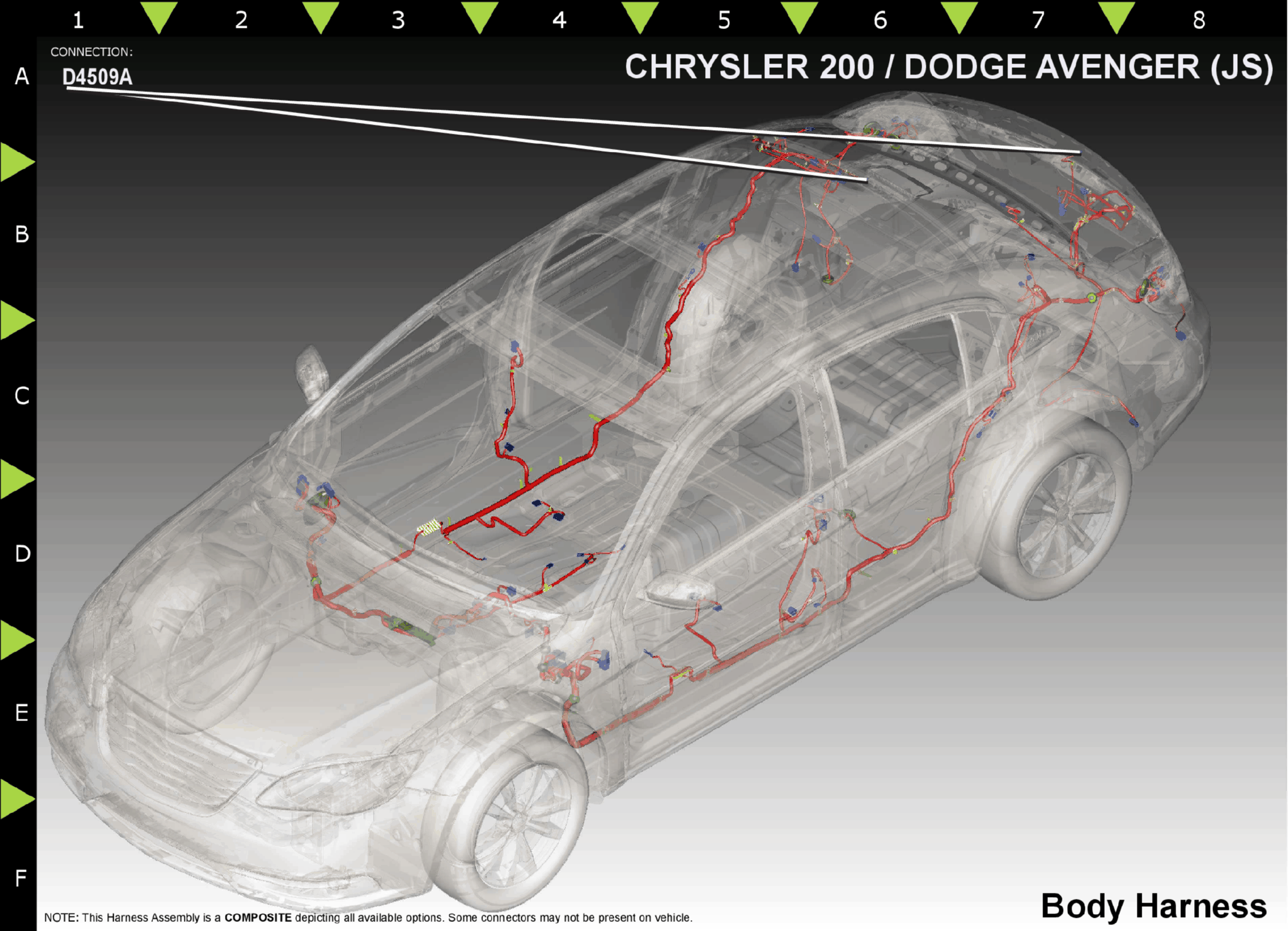

Fig 2: Lamp-Center High Mounted Stop C1 Component Location

Courtesy of CHRYSLER

Circuit

Wire Color

Gauge/Size

Function

Option

Z916

GROUND

BASE

Z917

GROUND

PREMIUM

L53

DG/WT

BRAKE LAMP CONTROL OUTPUT 1

N/A

⁽¹⁾	Pins not listed are not used for this connector
