Lamp-Assembly Tail-Left C1 (D6641A)

Harness-Family: Unibody

Color: BLACK

Gender: FEMALE

Part Number: 15326815

Part Description: TAXI ASM CONNECTORF GT 150 SLD

Connector No: D6641A

Option: ~~

Repair Kit Part Number: 68045319AA

Cavity Count: 4

Fig 1: Lamp-Assembly Tail-Left C1 Connector End View

Courtesy of CHRYSLER

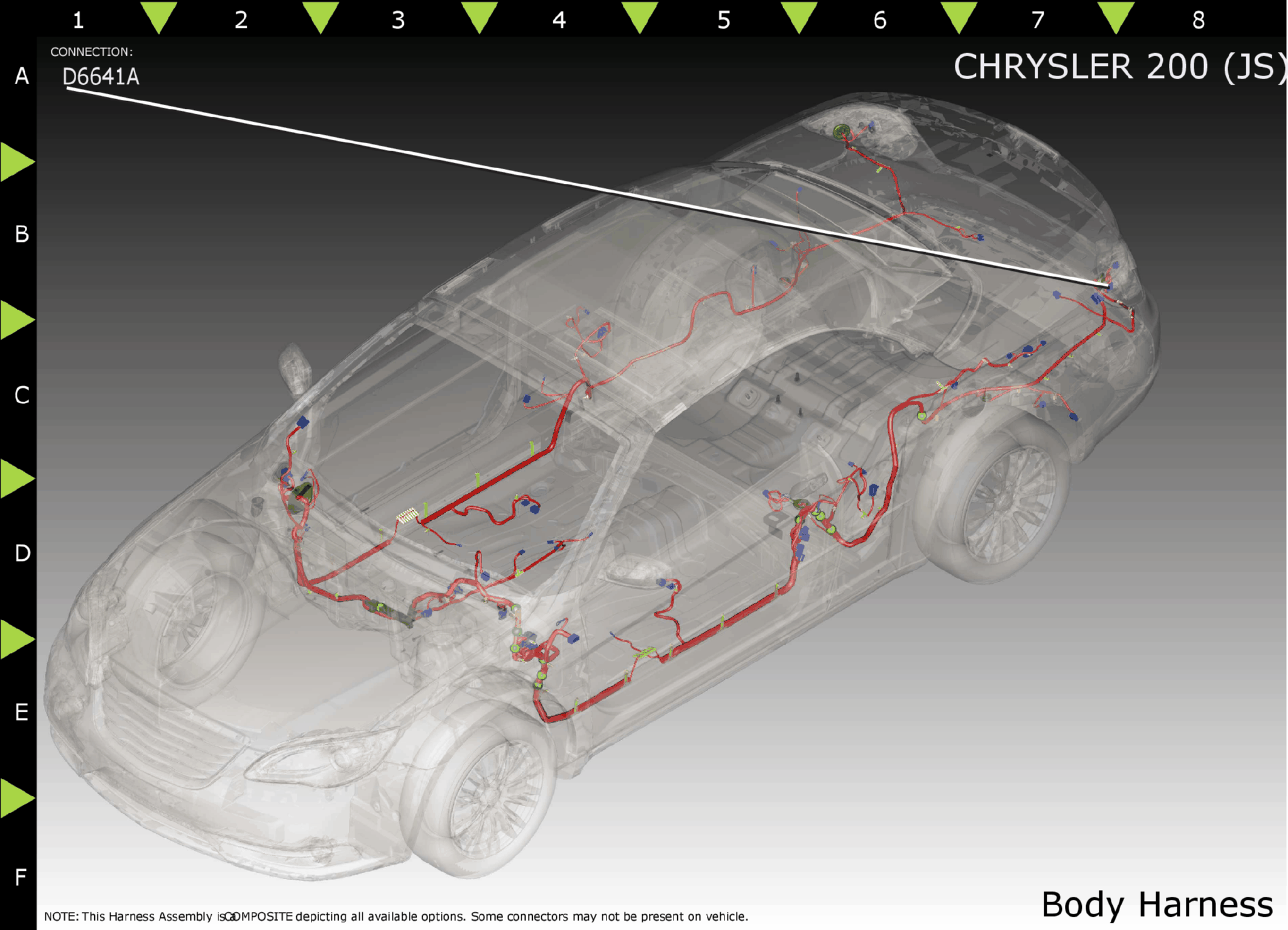

Fig 2: Lamp-Assembly Tail-Left C1 Component Location

Courtesy of CHRYSLER

Circuit

Wire Color

Gauge/Size

Function

Option

Z916

GROUND

N/A

L217

WT/VT

PARK LAMP FEED

N/A

L52

LEFT STOP LAMP DRIVER

N/A

L63

WT/DG

LEFT REAR TURN LAMP DRIVER

EXCEPT EXPORT

⁽¹⁾	Pins not listed are not used for this connector
