Heater-Seat Back-Left (D6735)

Harness-Family: Seat_Driver

Color: GREEN

Gender: MALE

Part Number: 7282-6444-60

Part Description: KAIZEN YESC SUB ASSEMBLY

Connector No: D6735

Option: ~~

Repair Kit Part Number: 68087932AA

Cavity Count: 2

Fig 1: Heater-Seat Back-Left Connector End View

GCWD1089327

Courtesy of CHRYSLER

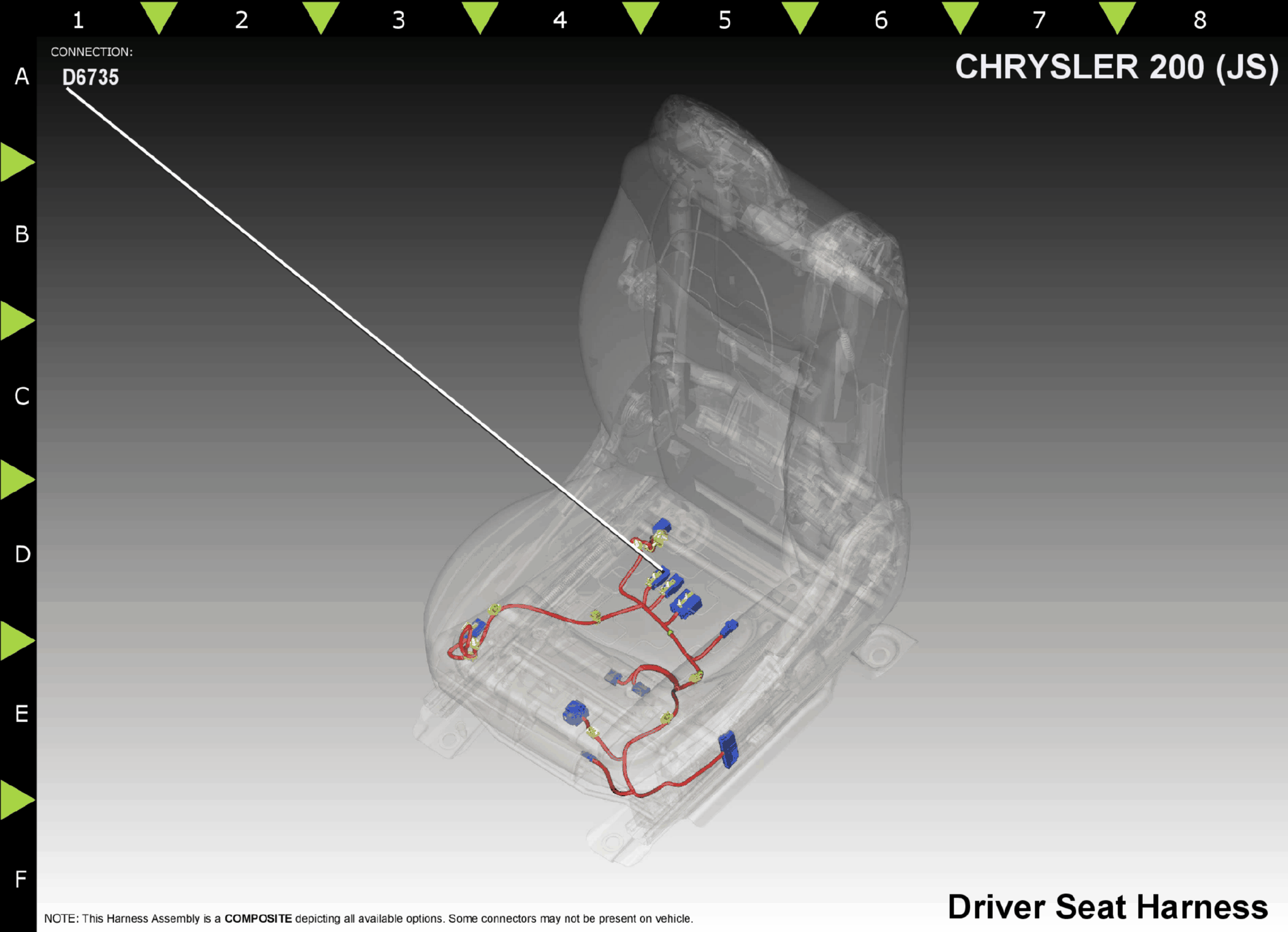

Fig 2: Heater-Seat Back-Left Component Location

GCWD1206033

Courtesy of CHRYSLER

Pin

Circuit

Wire Color

Gauge/Size

Function

Option

1

P187

LG/BR

18

LEFT FRONT SEAT HEATER CONTROL

N/A

2

Z914

BK

18

GROUND

N/A

⁽¹⁾	Pins not listed are not used for this connector
