Fusible Link 1 (F1001)

Harness-Family: Engine

Color: ~~

Gender: MALE

Part Number: NA

Part Description: Not Available

Connector No: F1001

Option: ~~

Repair Kit Part Number: Not Available

Cavity Count:

Fig 1: Fusible Link 1 Connector End View

GCWD1006457

Courtesy of CHRYSLER

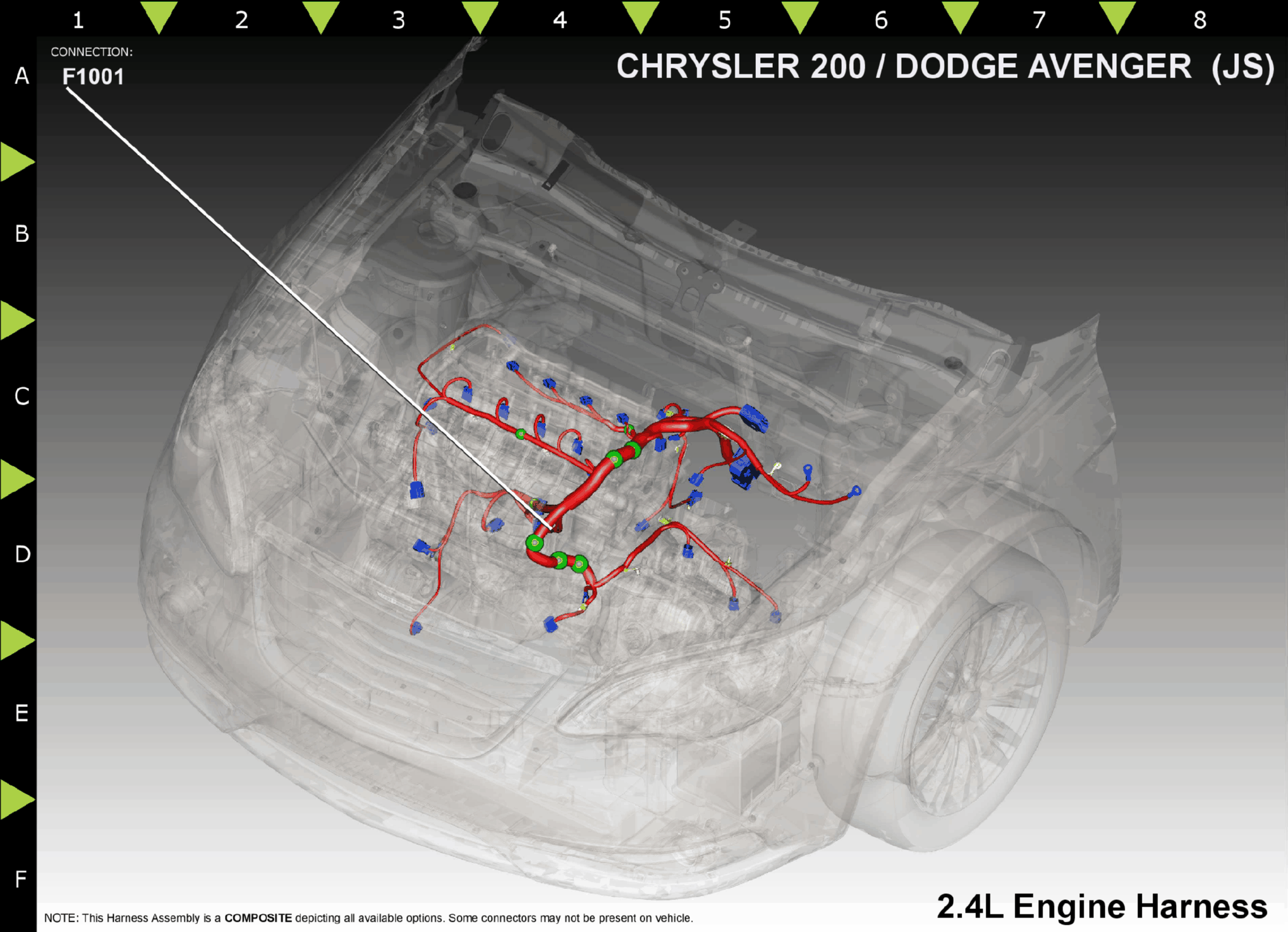

Fig 2: Fusible Link 1 Component Location

GCWD1206100

Courtesy of CHRYSLER

Pin

Circuit

Wire Color

Gauge/Size

Function

Option

1

A801

RD/GY

04

B(+)

N/A

2

A802

DG

10

B(+)

N/A

⁽¹⁾	Pins not listed are not used for this connector
