Fuse 25 10A - (TIPM) (F6025)

Harness-Family: TIPM_Internal

Color: ~~

Gender: MALE

Part Number: FUSE-CKT_BREAKER

Part Description: Not Available

Connector No: F6025

Option: ~~

Repair Kit Part Number: Not Available

Cavity Count:

Fig 1: Fuse 25 10a - (TIPM) Connector End View

GCWD1006305

Courtesy of CHRYSLER

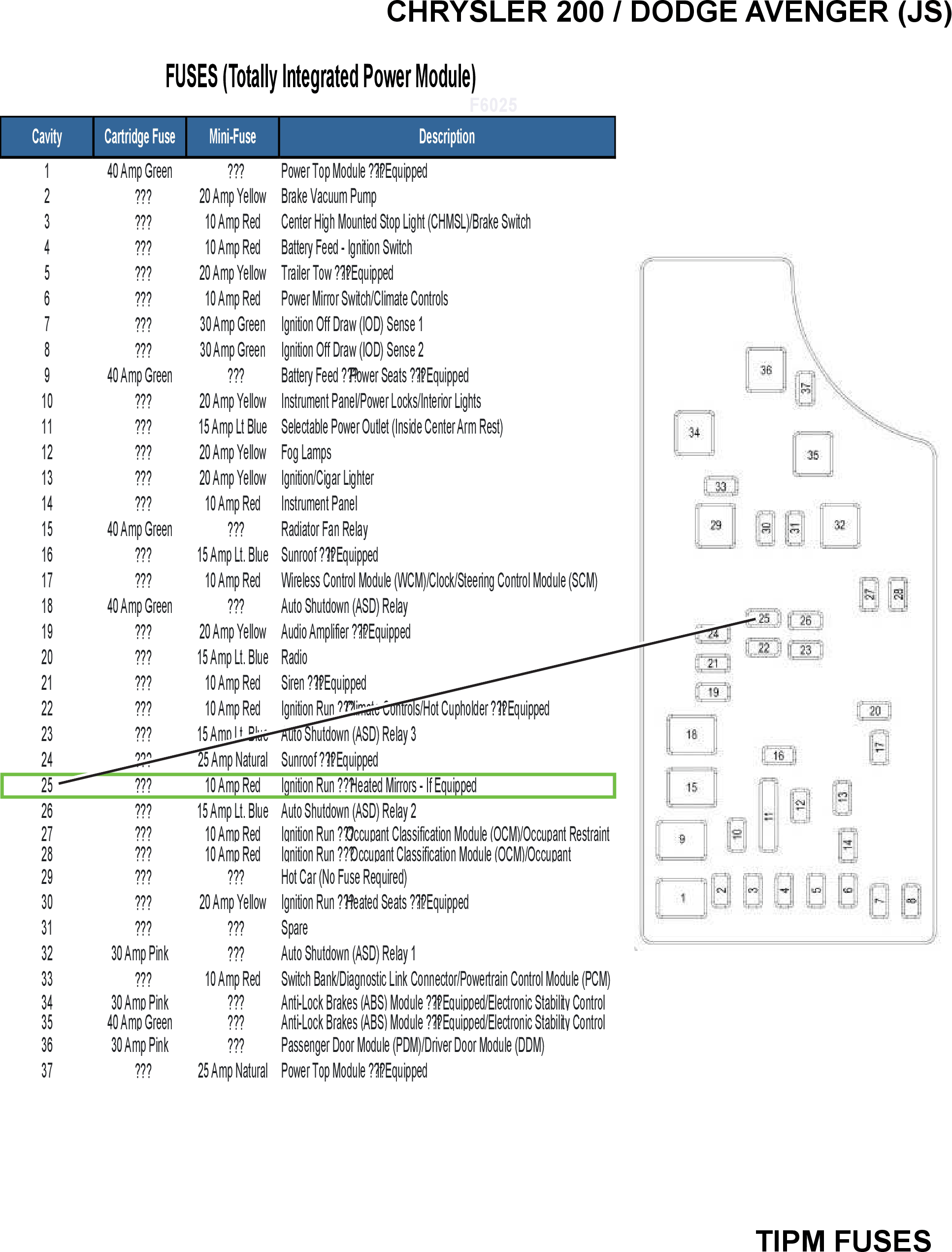

Fig 2: Fuse 25 10a - (TIPM) Component Location

GCWD1206052

Courtesy of CHRYSLER

Pin

Circuit

Wire Color

Gauge/Size

Function

Option

1

C515

BRD

CKT

REAR WINDOW DEFOGGER RELAY OUTPUT

N/A

2

C16

BRD

CKT

DRIVER MIRROR HEATER DRIVER

N/A

⁽¹⁾	Pins not listed are not used for this connector
