Fuse 19 20A - (TIPM) (F6019)

Harness-Family: TIPM_Internal

Color: ~~

Gender: MALE

Part Number: FUSE-CKT_BREAKER

Part Description: Not Available

Connector No: F6019

Option: ~~

Repair Kit Part Number: Not Available

Cavity Count:

Fig 1: Fuse 19 20a - (TIPM) Connector End View

GCWD1006305

Courtesy of CHRYSLER

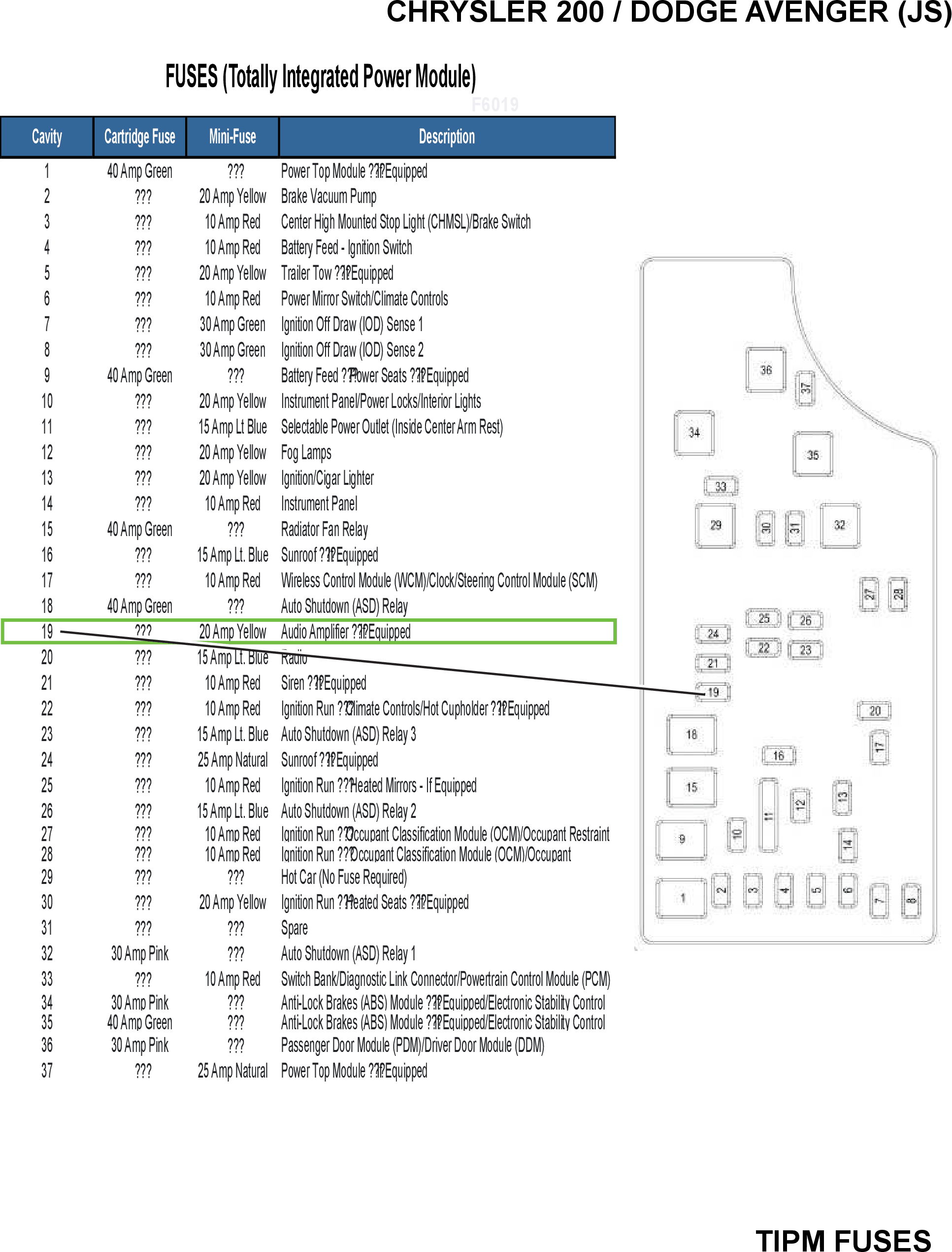

Fig 2: Fuse 19 20a - (TIPM) Component Location

GCWD1206090

Courtesy of CHRYSLER

Pin

Circuit

Wire Color

Gauge/Size

Function

Option

2

A419

BRD

CKT

FUSED B(+)

N/A

2

A420

BRD

CKT

FUSED B(+)

N/A

⁽¹⁾	Pins not listed are not used for this connector
