Fuse 08 30A - (TIPM) (F6008)

Harness-Family: TIPM_Internal

Color: ~~

Gender: MALE

Part Number: FUSE-CKT_BREAKER

Part Description: Not Available

Connector No: F6008

Option: ~~

Repair Kit Part Number: Not Available

Cavity Count:

Fig 1: Fuse 08 30a - (TIPM) Connector End View

GCWD1006305

Courtesy of CHRYSLER

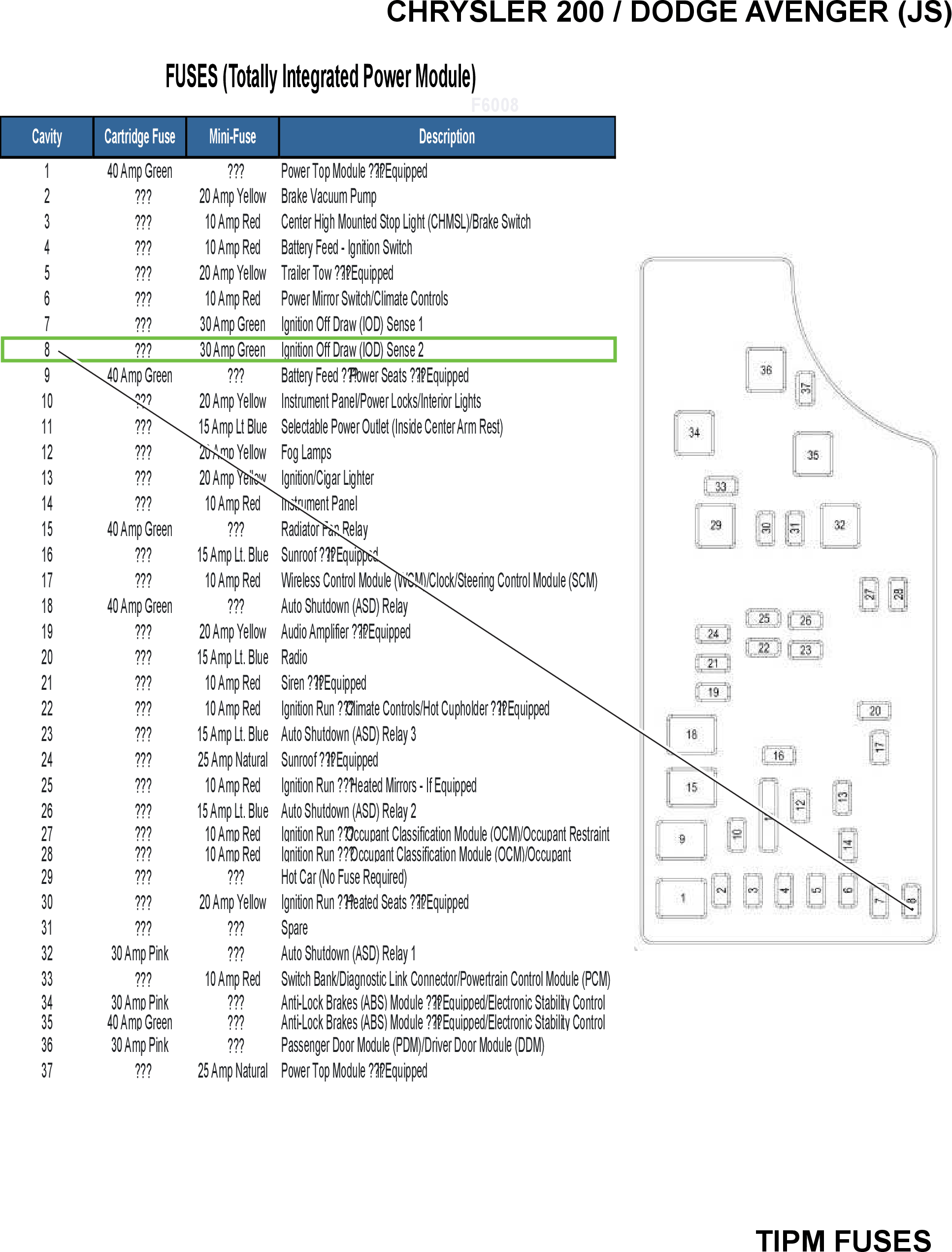

Fig 2: Fuse 08 30a - (TIPM) Component Location

GCWD1206110

Courtesy of CHRYSLER

Pin

Circuit

Wire Color

Gauge/Size

Function

Option

1

A0

BRD

CKT

B(+)

N/A

⁽¹⁾	Pins not listed are not used for this connector
