Amplifier-Radio C2 (D3804BAA)
Harness-Family: IP_Audio
Color: WHITE
Gender: FEMALE
Part Number: 01738521
Part Description: Not Available

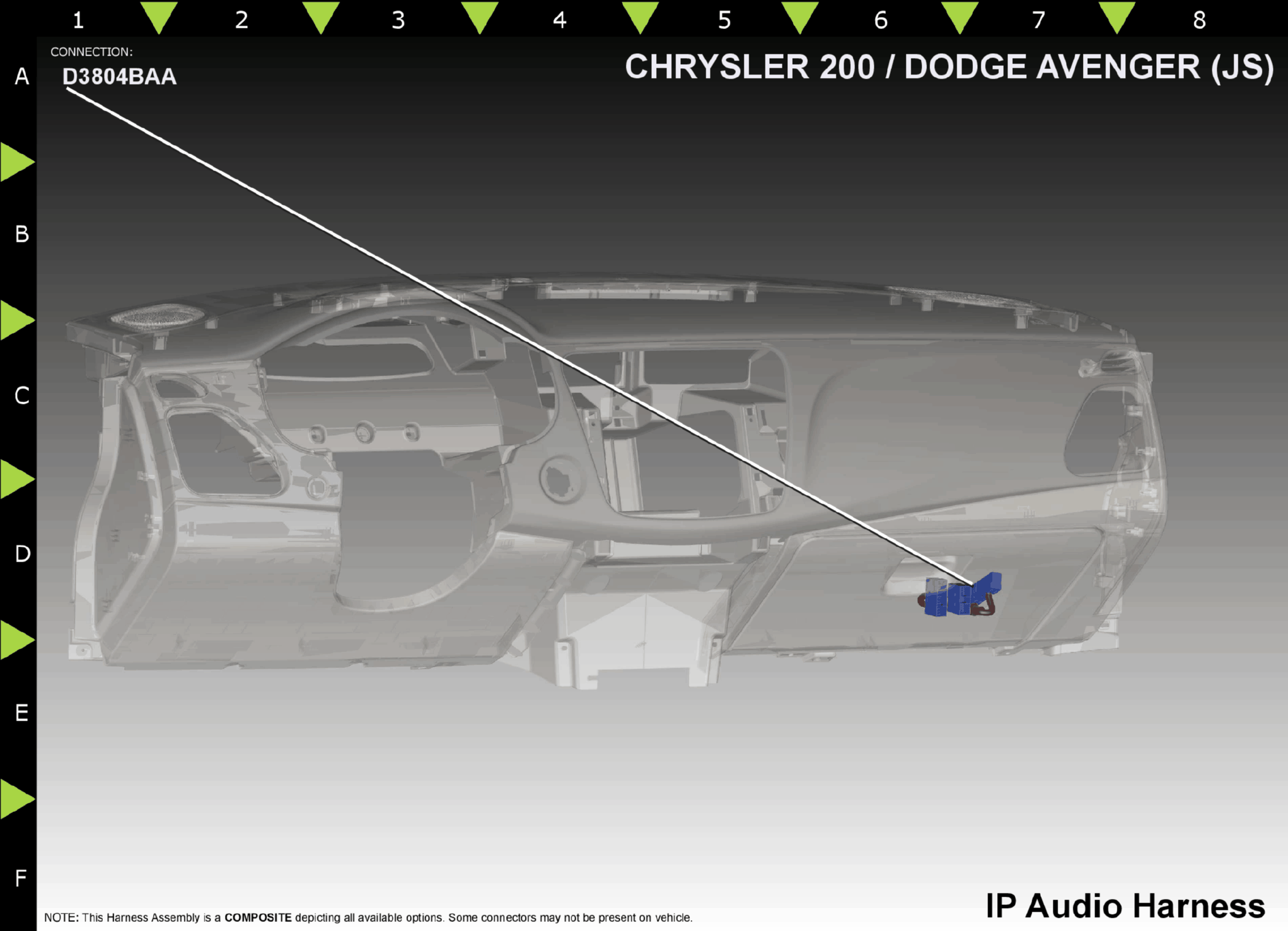

Connector No: D3804BAA
Option: ~~
Repair Kit Part Number: 05183479AA
Cavity Count: 14
| Pin | Circuit | Wire Color | Gauge/Size | Function | Option | ||
|---|---|---|---|---|---|---|---|
| B1 | X201 | GY/VT | 18 | LEFT FRONT SPEAKER (+) | N/A | ||
| B12 | X394 | YL/GY | 18 | AMPLIFIED RIGHT REAR SPEAKER (-) | N/A | ||
| B2 | X202 | DG/VT | 18 | RIGHT FRONT SPEAKER (+) | N/A | ||
| B3 | X303 | DG/TN | 18 | AMPLIFIED LEFT REAR SPEAKER (+) | N/A | ||
| B4 | X304 | DG/BR | 18 | AMPLIFIED RIGHT REAR SPEAKER (+) | N/A | ||
| B7 | X291 | GY/YL | 18 | LEFT FRONT SPEAKER (-) | N/A | ||
| B8 | X292 | DG/YL | 18 | RIGHT FRONT SPEAKER (-) | N/A | ||
| B9 | X393 | DG/GY | 18 | AMPLIFIED LEFT REAR SPEAKER (-) | N/A | ||
|
|||||||
