Airbag-Driver Squib 1 (D6663A)

Harness-Family: Airbag

Color: BLACK

Gender: FEMALE

Part Number: 54550266

Part Description: CONNECTOR ASSEMBLY (ABX-3 AIRBAG)

Connector No: D6663A

Option: ~~

Repair Kit Part Number: 68053130AA

Cavity Count: 2

Fig 1: Airbag-Driver Squib 1 Connector End View

Courtesy of CHRYSLER

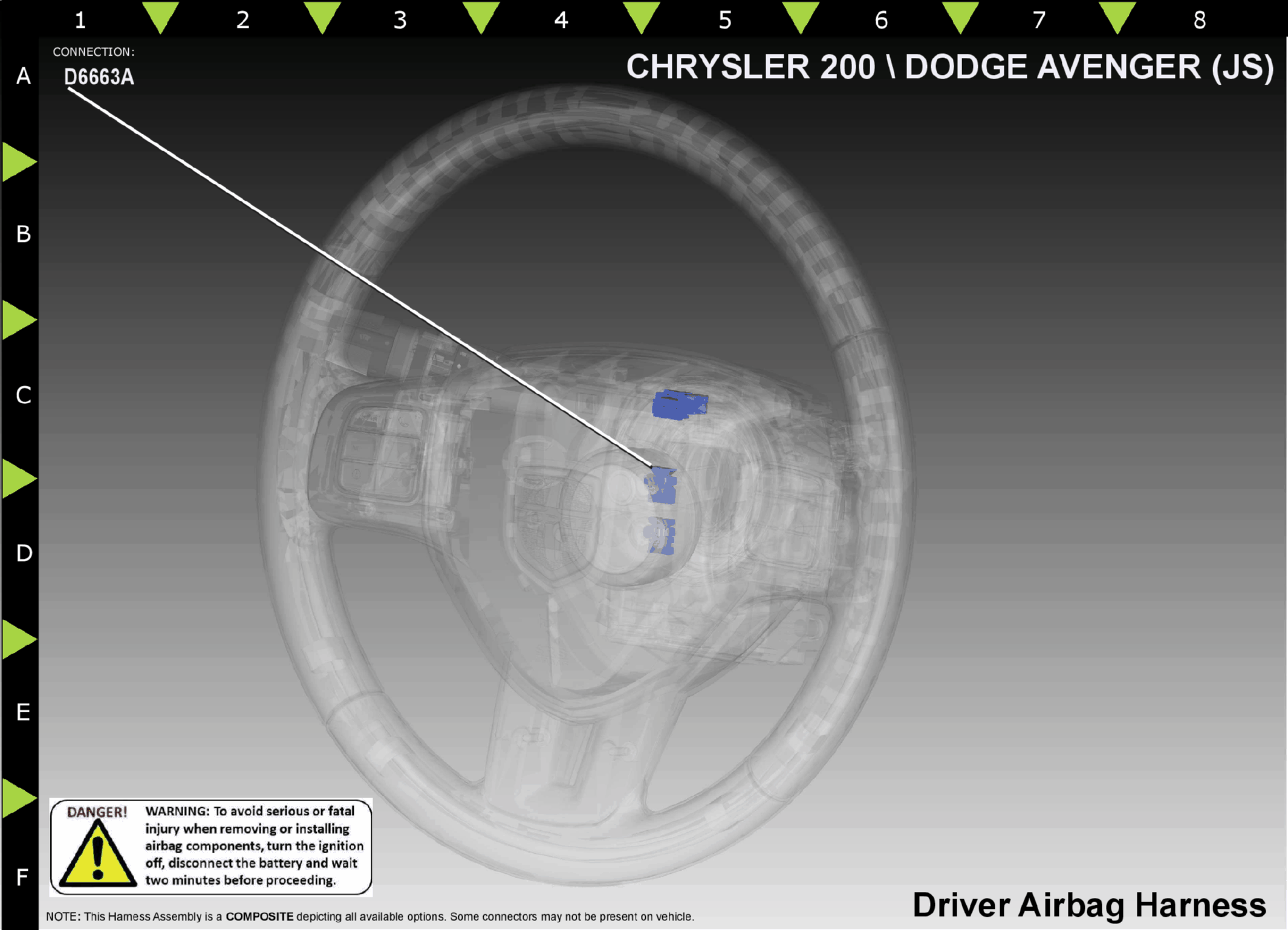

Fig 2: Airbag-Driver Squib 1 Component Location

Courtesy of CHRYSLER

Circuit

Wire Color

Gauge/Size

Function

Option

R45

DRIVER SQUIB 1 LINE 1

N/A

R43

DRIVER SQUIB 1 LINE 2

N/A

R45

DRIVER SQUIB 1 LINE 1

N/A

R43

DRIVER SQUIB 1 LINE 2

N/A

⁽¹⁾	Pins not listed are not used for this connector
