Mirror-Inside Rearview (Except Hands Free) (D6625)

Harness-Family: Mirror_Int_Jumper

Color: BLACK

Gender: FEMALE

Part Number: VHR-7NBK

Part Description: INSULATOR

Connector No: D6625

Option: EXCEPT HANDS FREE

Repair Kit Part Number: 05102404AA

Cavity Count: 7

Fig 1: Mirror-Inside Rearview Connector End View (Except Hands Free)

Courtesy of CHRYSLER

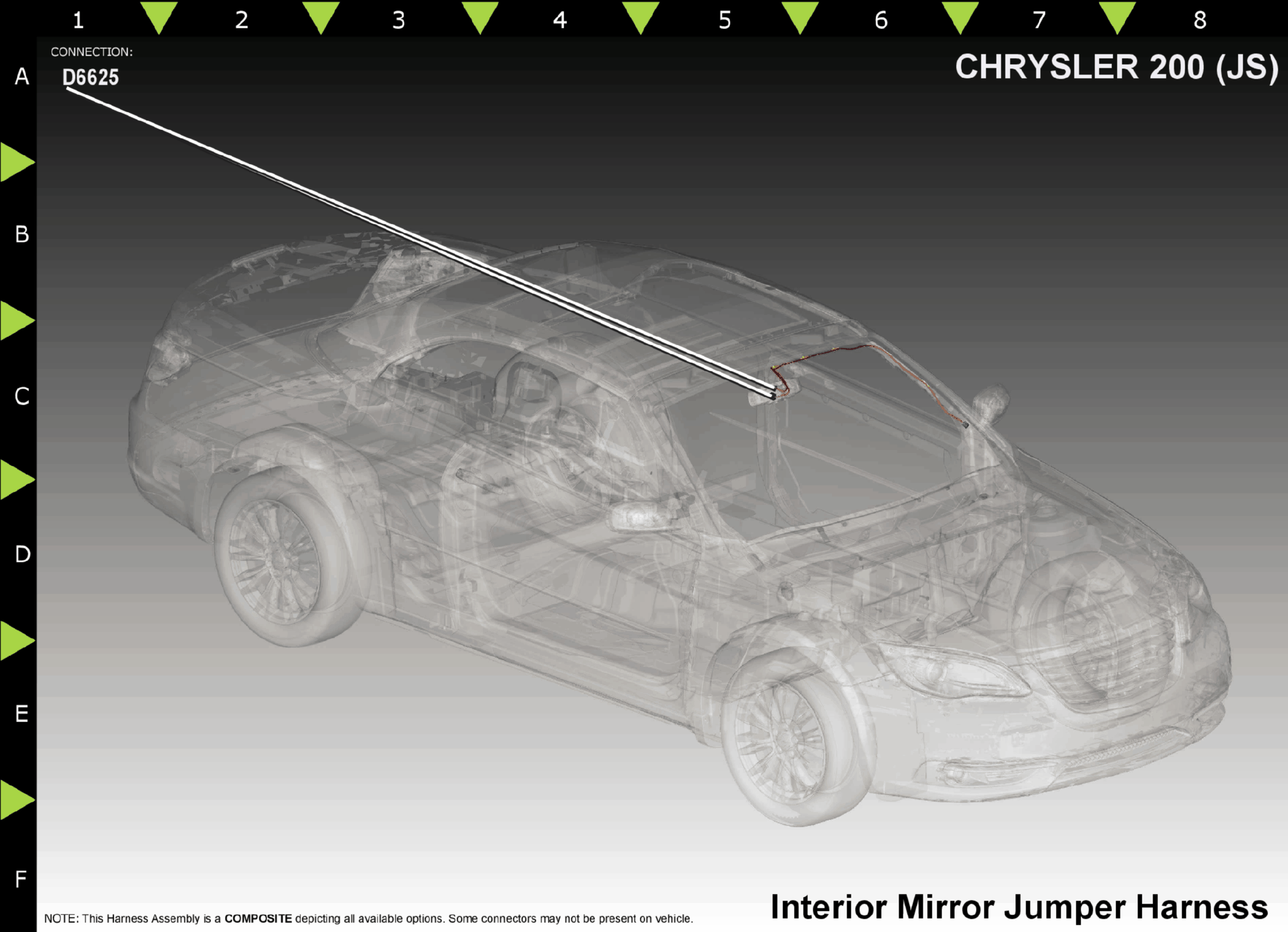

Fig 2: Mirror-Inside Rearview Component Location (Except Hands Free)

Courtesy of CHRYSLER

Circuit

Wire Color

Gauge/Size

Function

Option

F202

BK/PK

IGNITION RUN/START CONTROL OUTPUT

N/A

M27

BK/VT

READING LAMPS DRIVER

N/A

Z910

GROUND

N/A

M24

BK/OR

COURTESY LAMPS DRIVER

N/A

Z910

GROUND

N/A

⁽¹⁾	Pins not listed are not used for this connector
