Airbag-Passenger Squib 1 (D6665A)

Harness-Family: IP

Color: LIGHT GREEN

Gender: FEMALE

Part Number: PPI0001461

Part Description: SRS CONNECTOR AK2 FERRITE

Connector No: D6665A

Option: ~~

Repair Kit Part Number: Not Available

Cavity Count: 2

Fig 1: Airbag-Passenger Squib 1 Connector End View

Courtesy of CHRYSLER

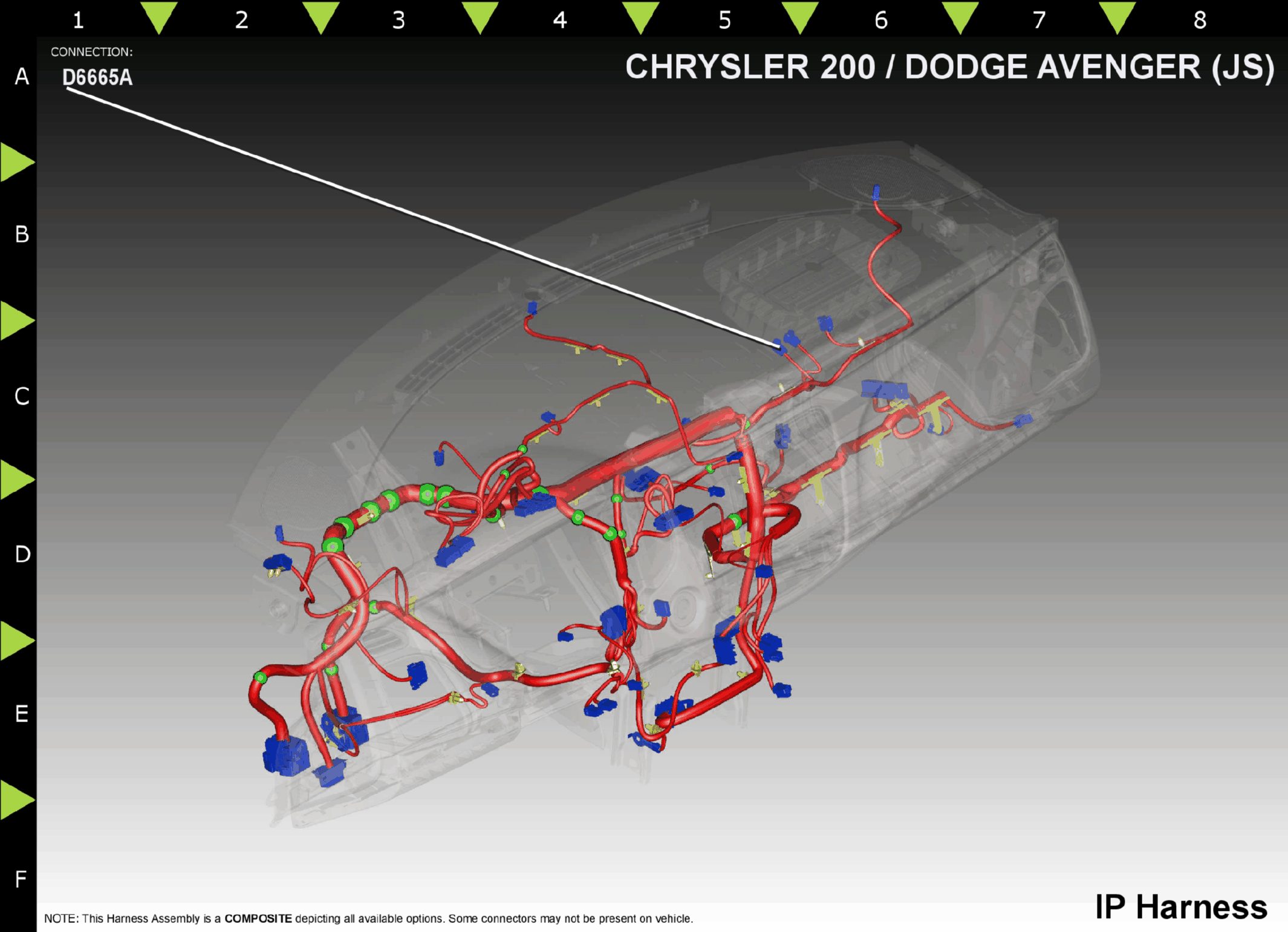

Fig 2: Airbag-Passenger Squib 1 Component Location

Courtesy of CHRYSLER

Circuit

Wire Color

Gauge/Size

Function

Option

R42

LB/BR

PASSENGER SQUIB 1 LINE 2

N/A

R44

LB/OR

PASSENGER SQUIB 1 LINE 1

N/A

R42

LB/BR

PASSENGER SQUIB 1 LINE 2

N/A

R44

LB/OR

PASSENGER SQUIB 1 LINE 1

N/A

⁽¹⁾	Pins not listed are not used for this connector
