RH Top Pad

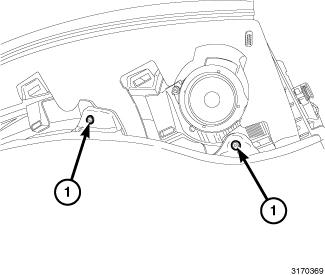

Fig 1: Two Fasteners
GC0147151Courtesy of CHRYSLER GROUP, LLC
  1. Disconnect the negative battery cable.
  2. Remove the A-pillar trim. Refer to PANEL, A-PILLAR TRIM, REMOVAL .
  3. Remove the defroster grille. Refer to GRILLE, DEFROSTER, REMOVAL .
  4. Remove the center stack bezel hood and the center stack bezel. Refer to BEZEL, INSTRUMENT PANEL, CENTER, REMOVAL  and BEZEL, INSTRUMENT PANEL, CONSOLE, REMOVAL .
  5. Remove the floor console. Refer to CONSOLE, CENTER, REMOVAL .
  6. Remove the glove box assembly. Refer to GLOVE BOX, INSTRUMENT PANEL, REMOVAL .
  7. Remove the outlet vent. Refer to OUTLET, AIR, REMOVAL .
  8. Remove the two fasteners located under the center stack bezel hood securing the top pad to the base panel.
  9. Remove the two fasteners (1) located near the speaker.
    Fig 2: PAB Bracket, I/P Structure & Fasteners
    GC0147123Courtesy of CHRYSLER GROUP, LLC
  10. Looking in from the glove box cavity, disconnect the PAB squib connectors and remove the nuts securing the PAB to the I/P structure. Refer to AIR BAG, PASSENGER, REMOVAL .

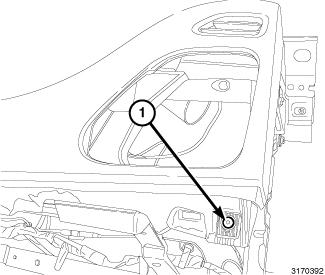

    Fig 3: Fastener
    GC0147152Courtesy of CHRYSLER GROUP, LLC
  11. Remove the fastener (1) below the vent opening.
  12. Grasp the RH top pad up near the defroster duct and pull up and rearward to disengage the retaining clips.
    CAUTION:

    The Instrument Panel Top pad may be hard to unsnap from the instrument panel. Be sure not to mar, scuff, or damage the instrument panel pad.

  13. Remove the RH top pad from the vehicle.
  14. If necessary, separate the PAB from the RH top pad. Refer to AIR BAG, PASSENGER, REMOVAL .
