Mid/Rear Panel

Fig 1: Right And Left Center Rail Trim & Push Pins

Courtesy of CHRYSLER GROUP, LLC

Open top and place into the vertical position.
Remove the push pins (2) on the center rail trim (1) left and right side.
Gently pry off both left and right center rail trim (1).

Fig 2: Center Panel
Courtesy of CHRYSLER GROUP, LLC
Using a trim stick, door panel trim tool or equivalent, pry the front and mid part of the rigid panel from the center panel.
Remove any push pins that remain in the front panel.

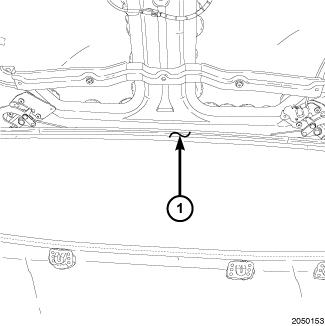

Fig 3: Headliner Deck Bar
Courtesy of CHRYSLER GROUP, LLC
Disengage J-Clip from the headliner deck bar. (1)

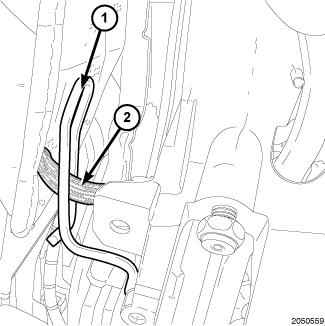

Fig 4: Loop Bracket & Strap
Courtesy of CHRYSLER GROUP, LLC
Remove strap (2) from the loop bracket (1) on both sides of the vehicle.

Fig 5: Headliner To Closeout Panel push pins
Courtesy of CHRYSLER GROUP, LLC
Remove the three push pins (1) securing the headliner to the closeout panel.
Remove the flexible headliner from the headliner linkage and remove from vehicle.
