Water Leak - Zone C

Fig 1: Rear Rail Weatherstrip
GC0122826Courtesy of CHRYSLER GROUP, LLC
  1. Rear rail weatherstrip (2) not installed correctly.
    1. Adjust the weatherstrip. Refer to WEATHERSTRIP, CONVERTIBLE TOP, ADJUSTMENTS .
    2. Replace the weatherstrip. Refer to WEATHERSTRIP, CONVERTIBLE TOP, REMOVAL .
    3. Retest for water leaks. Refer to CONVERTIBLE TOP, CST AND RHT COMMON COMPONENTS, STANDARD PROCEDURE .

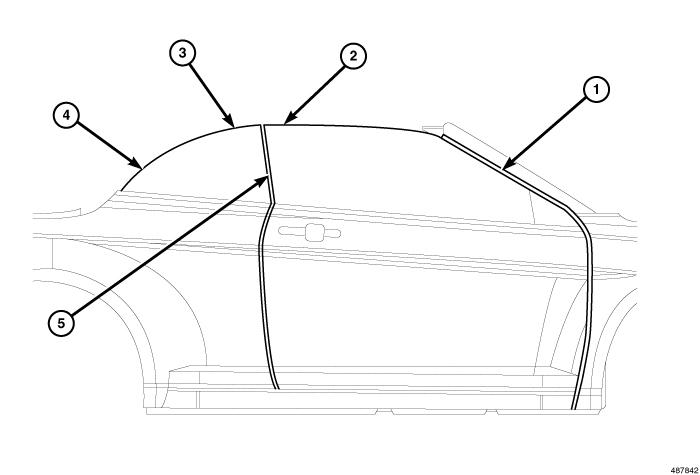

    Fig 2: On-Vehicle Gap Location
    GC0122800Courtesy of CHRYSLER GROUP, LLC
  2. Door and quarter glass not adjusted properly.
    1. Adjust door glass. Refer to GLASS, ADJUSTMENTS .
    2. Retest for water leaks. Refer to CONVERTIBLE TOP, CST AND RHT COMMON COMPONENTS, STANDARD PROCEDURE .
