Seats, Front Sedan: Seat: Description: Description
WARNING:
Discard and replace the seat back bolts with new bolts when servicing. Installing used bolts may result in the loosening of the seat back bolts after repair. Failure to follow these instructions may result in serious or fatal injury.

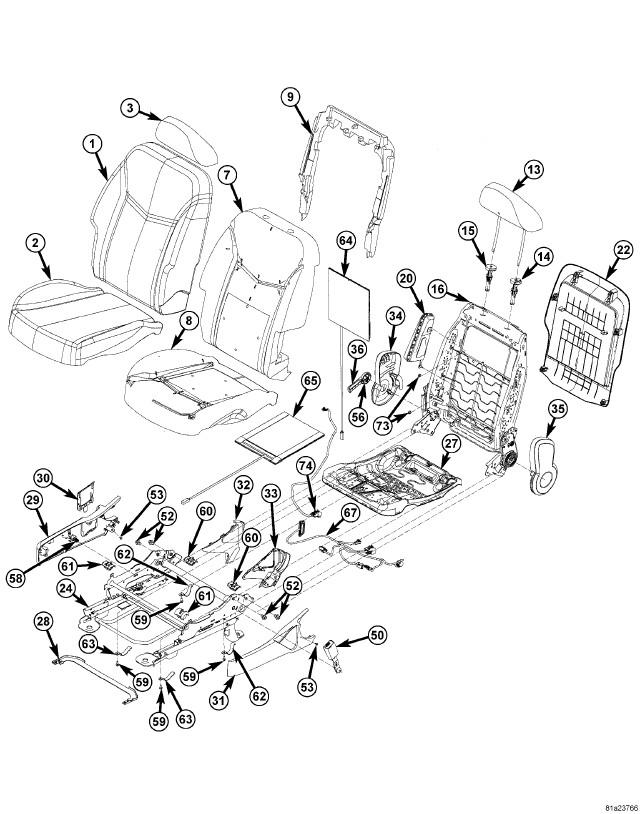

PASSENGER 2-WAY FOLD FLAT SEAT BREAKDOWN
| 1 - Seat Back | 33 - Fold Flat Inner Left Hand |
| 2 - Seat Cushion | 34 - Fold Flat Upper Outboard Right Hand Assembly |
| 3 - Head Rest | 35 - Fold Flat Upper Inboard Right Hand Assembly |
| 7 - Seat Back Foam | 36 - Recliner Handle |
| 8 - Cushion Foam | 50 - Buckle Assembly Inboard Right Hand Side |
| 9 - Plastic Back | 52 - Torx Bolt Track Assembly |
| 13 - Head Rest | 53 - Screw Side Shield |
| 14 - Sleeve Guide Live | 56 - Clip |
| 15 - Sleeve Guide Slave | 58 - Clip |
| 16 - Fold Flat Mat With Static Mat | 59 - Bolt, Cushion Pan To Track Assembly |
| 20 - Side Bag Air Bag Right Hand | 60 - Bracket. Cushion Pan To Track Assembly - Rear |
| 22 - Seat Back Panel Fold Flat Assembly | 61 - Bracket. Cushion Pan To Track Assembly - Front |
| 24 - Track Assembly 2-Way Manual | 62 - Clips Cushion Pan To Track Assembly - Rear |
| 27 - Cushion Pan With Suspension Mat | 63 - Clips Cushion Pan To Track Assembly - Front |
| 28 - Cross Brace For Tracks | 64 - Heat Mat Seat Back |
| 29 - Fold Flat Lower Outboard Right Hand Side Shield | 65 - Heat Mat Seat Cushion |
| 30 - Cover Passenger Fold Flat Outboard Right Hand | 73 - Hex Nuts |
| 31 - Fold Flat Lower Inboard Right Hand Side Shield | 74 - Driver/Passenger Harness |
| 32 - Fold Flat Inner Right Hand | |
WARNING:
Discard and replace the seat back bolts with new bolts when servicing. Installing used bolts may result in the loosening of the seat back bolts after repair. Failure to follow these instructions may result in serious or fatal injury.

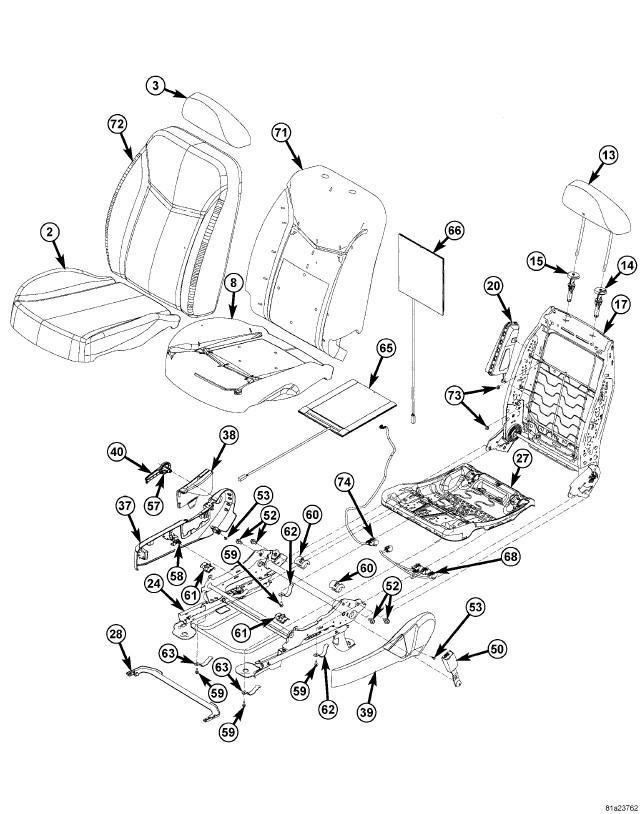

PASSENGER 2-WAY SEAT BREAKDOWN
| 2 - Seat Cushion | 52 - Torx Bolt Track Assembly |
| 3 - Head Rest | 53 - Screw Side Shield |
| 8 - Cushion Foam | 57 - Clip |
| 13 - Head Rest | 58 - Clip |
| 14 - Sleeve Guide Live | 59 - Bolt Cushion Pan To Track Assembly |
| 15 - Sleeve Guide Slave | 60 - Bracket Cushion Pan To Track Assembly Rear |
| 17 - Passenger Static Mat | 61 - Bracket Cushion Pan To Track Assembly Front |
| 20 - Side Bag Air Bag Right Hand | 62 - Clips Cushion Pan To Track Assembly Rear |
| 24 - Track Assembly 2-Way Manual | 63 - Clips Cushion Pan To Track Assembly Front |
| 28 - Cross Brace For Tracks | 65 - Heat Mat Seat Cushion |
| 29 - Fold Flat Lower Outboard Right Hand Side Shield | 66 - Heat Mat Seat Back |
| 38 - Cover Passenger 2-Way /8-Way Outboard Right Hand | 68 - Passenger Track Position Sensor Heat |
| 39 - Passenger 2-Way Inboard Right Hand Side Shield | 73 - Hex Nut |
| 40 - Recliner Handle | 74 - Driver/Passenger Harness |
| 50 - Buckle Assembly Inboard Right Hand Side | |
WARNING:
Discard and replace the seat back bolts with new bolts when servicing. Installing used bolts may result in the loosening of the seat back bolts after repair. Failure to follow these instructions may result in serious or fatal injury.

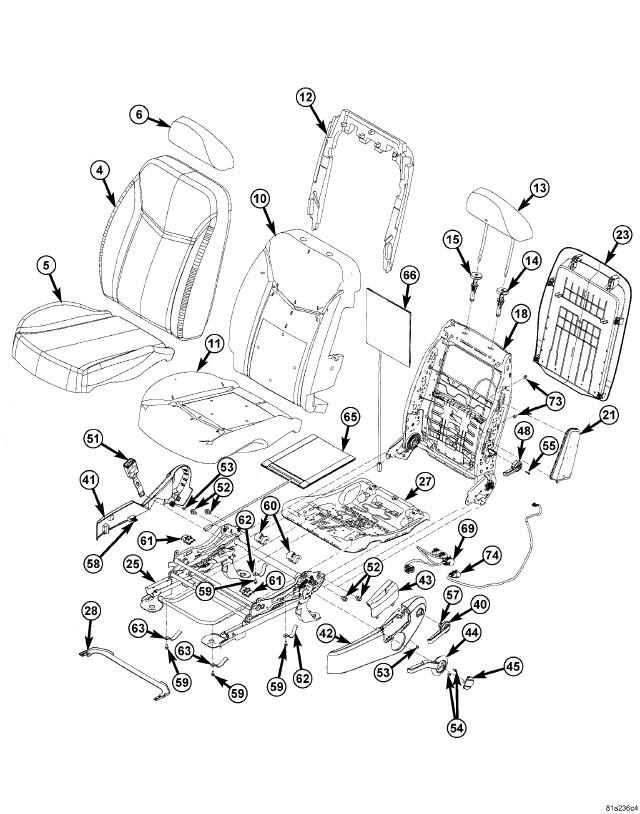

4-WAY POWER DRIVER SEAT BREAKDOWN
| 4 - Seat Back | 45 - Lifter Handle Cap |
| 5 - Seat Cushion | 48 - Lumbar Handle |
| 6 - Head Rest | 51 - Buckle Assembly Inboard |
| 10 - Seat Back Foam | 52 - Torx Bolt To Track Assembly |
| 11 - Cushion Foam | 53 - Side Shield Screw |
| 12 - Plastic Back | 54 - Lifter Handle Screw |
| 13 - Head Rest | 55 - Lumbar Handle Screw |
| 14 - Sleeve Guide Live | 57 - Clip |
| 15 - Sleeve Guide Slave | 58 - Clip |
| 18 - Seat Back Frame With Lumbar | 59 - Cushion Pan To Track Assembly |
| 21 - Side Air Bag | 60 - Bracket, Cushion Pan To Track Assembly Rear |
| 23 - Seat Back Panel With Cloth Map Pocket Assembly | 61 - Bracket, Cushion Pan To Track Assembly Front |
| 25 - Track Assembly | 62 - Clips Cushion Pan To Track Assembly Rear |
| 27 - Cushion Pan With Suspension Mat | 63 - Clips Cushion Pan To Track Assembly Front |
| 28 - Cross Brace For Tracks | 65 - Seat Cushion Heat Mat |
| 40 - Recliner Handle | 66 - Seat Back Heat Mat |
| 41 - 4/8-Way Inboard Side Shield | 69 - 4-Way Heat |
| 42 - 4-Way Outboard Side Shield | 73 - Hex Nut |
| 43 - Cover 4- Way | 74 - Driver/Passenger Wire Harness |
| 44 - Lifter Handle | |
WARNING:
Discard and replace the seat back bolts (18) with new bolts when servicing. Installing used bolts may result in the loosening of the seat back bolts after repair. Failure to follow these instructions may result in serious or fatal injury.

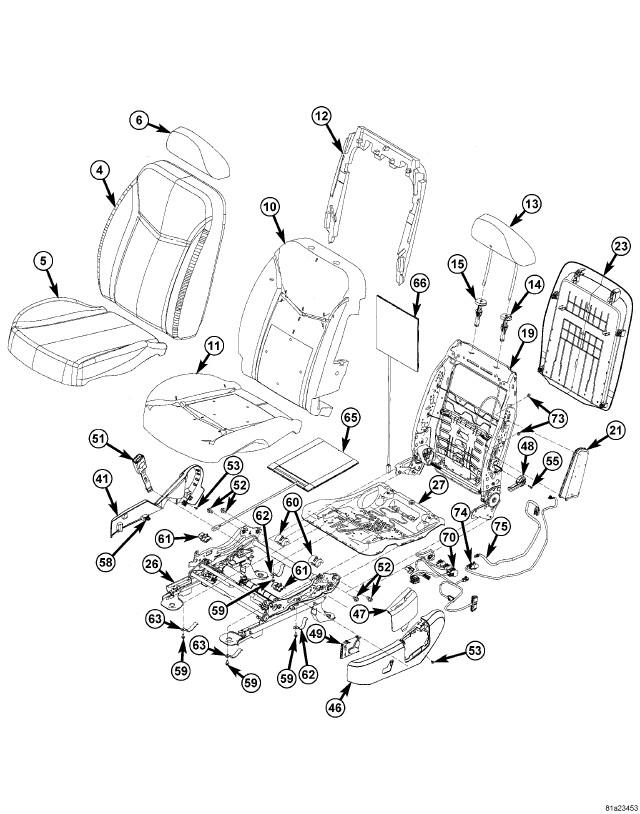

8-WAY POWER DRIVER SEAT BREAKDOWN
| 4 - Seat Back | 49 - Power Switch 8- Way |
| 5 - Seat Cushion | 51 - Buckle Assembly Inboard |
| 6 - Head Rest | 52 - Torx Bolt To Track Assembly |
| 10 - Seat Back Foam | 53 - Side Shield Screw |
| 11 - Cushion Foam | 55 - Lumbar Handle Screw |
| 12 - Plastic Back | 58 - Clip |
| 13 - Head Rest | 59 - Bolt, Cushion Pan To Track Assembly |
| 14 - Sleeve Guide Live | 60 - Bracket, Cushion Pan To Track Assembly Rear |
| 15 - Sleeve Guide Slave | 61 - Bracket, Cushion Pan To Track Assembly Front |
| 19 - Seat Back With Lumbar With Power Recliner | 62 - Clips Cushion Pan To Track Assembly Rear |
| 21 - Side Air Bag | 63 - Clips Cushion Pan To Track Assembly Front |
| 23 - Seat Back Panel With Cloth Map Pocket Assembly | 65- Heat Mat Seat Cushion |
| 26 - Track Assembly 8-Way | 66 - Seat Back Heat Mat |
| 27 - Cushion Pan With Suspension Mat | 70 - 8-Way Track Position Sensor Heat |
| 41 - 4/8-Way Inboard Side Shield | 73 - Hex Nut |
| 47 - Cover 4-Way / 8-Way Outboard | 74 - Driver/Passenger Wire Harness |
| 48 - Lumbar Handle | 75 - Power Recliner Jumper |
