Panel, Quarter Trim: Removal: Lower

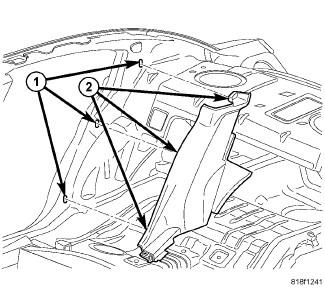

Fig 1: Lower C-Pillar Quarter Trim
GC0123009Courtesy of CHRYSLER GROUP, LLC
  1. Remove door sill trim panel. Refer to PLATE, SCUFF, DOOR SILL, REMOVAL .
  2. Fold rear seats down.
  3. Remove upper C-pillar trim. Refer to PANEL, C-PILLAR TRIM, REMOVAL .
  4. Using trim stick (special tool #C-4755, Trim Stick) or equivalent, disengage the clips (2) from clip locations (1) attaching the lower quarter trim to the body.
  5. Remove lower quarter trim from vehicle.
