Panel, Quarter Trim: Removal: Convertible
Courtesy of CHRYSLER GROUP, LLC
- Place the convertible top in the full open position. Ensure the top is completely stowed into the trunk area.
- Using a trim stick or equivalent, pry the rear shelf trim.
- Remove the rear seat cushion. Refer to
COVER, SEAT CUSHION, REMOVAL .
- Remove rear seat back. Refer to SEAT BACK, REMOVAL .

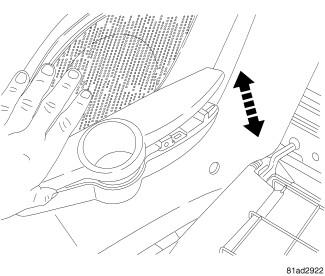

- Using a trim stick or equivalent, pry up on the armrest/cup holder and remove from the quarter trim panel.
Courtesy of CHRYSLER GROUP, LLC

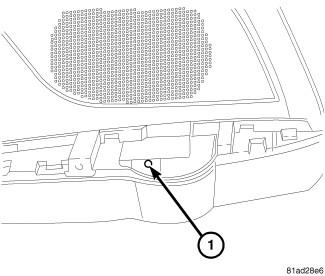

- Remove the one screw (1) from the quarter trim panel.
Courtesy of CHRYSLER GROUP, LLC

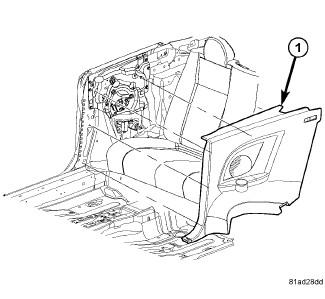

- Using a trim stick or equivalent, gently pry out on the quarter trim panel (1) and remove from vehicle.
