Bezel, Center Console: Removal: Removal

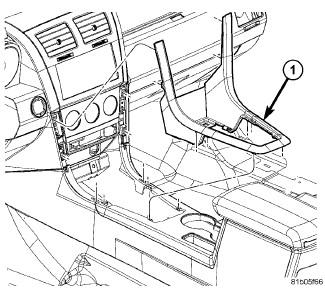

Fig 1: Bezel
GC0120760Courtesy of CHRYSLER GROUP, LLC
  1. Remove automatic or manual shifter housing and shift knob. Refer to BEZEL, SHIFTER, REMOVAL  and BEZEL, SHIFTER, REMOVAL .
  2. Using trim stick (special tool #C-4755, Trim Stick), remove center console bezel (1).
