Bezel, Instrument Panel, Console: Removal: Removal

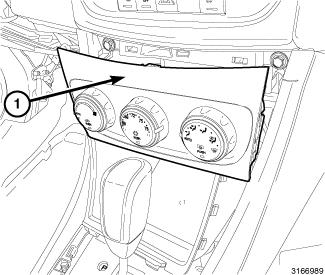

Fig 1: HVAC Controls

Courtesy of CHRYSLER GROUP, LLC

1. Disconnect the negative battery cable.
2. Using trim stick (special tool #C-4755, Trim Stick) or equivalent, remove and disconnect the HVAC controls (1).

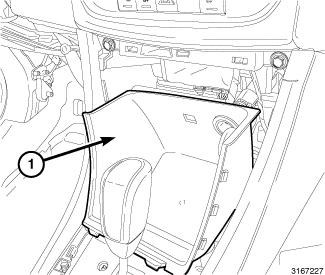

   Fig 2: Console Front Storage Bin

   Courtesy of CHRYSLER GROUP, LLC
3. Using trim stick (special tool #C-4755, Trim Stick) or equivalent, remove and disconnect the console front storage bin (1).
