Cable, Hood Release: Removal: Removal

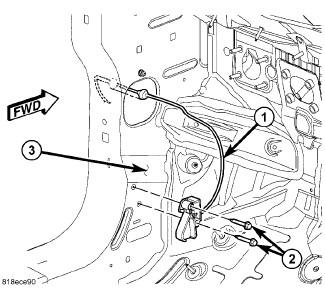

Fig 1: Hood Release Handle
GC0122957Courtesy of CHRYSLER GROUP, LLC
  1. Remove hood latch. Refer to LATCH, HOOD, REMOVAL .
  2. Remove left front cowl trim panel.
  3. Remove screws (2) attaching hood release handle to inner cowl panel (3).

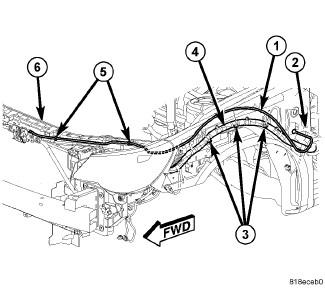

    Fig 2: Cable Route
    GC0122958Courtesy of CHRYSLER GROUP, LLC
  4. Release clips (5) attaching hood release cable to left inner frame rail.
  5. Disengage rubber grommet at lower dash panel.
  6. Disengage push-in fastener attaching hood release cable (1) to dash panel.
  7. Remove hood release cable (1) from vehicle.
