Spring, Bow, Number 2 And 3: Removal: Removal

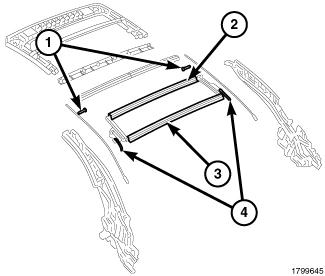

Fig 1: Number 2 And 3 Bow, Springs & Fasteners
GC0122878Courtesy of CHRYSLER GROUP, LLC
  1. Open top and put in the vertical position.
  2. Reach between the top cover and the side rail assembly and disconnect the spring (4) from the 2/3 bow assembly bracket.
  3. Disconnect the 2/3 bow spring and remove the spring.
