Tonneau Bumper Adjustment

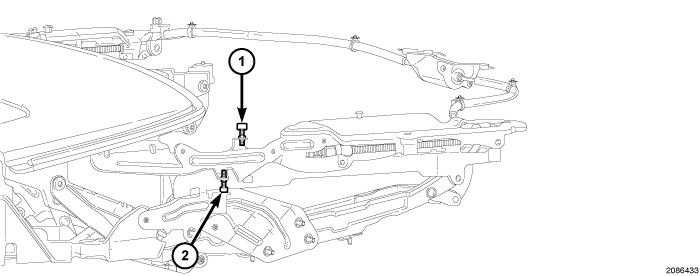

Fig 1: Upper & Lower Tonneau Bumper

Courtesy of CHRYSLER GROUP, LLC

The upper tonneau bumper (1) is used to adjust the tonneau panel up or down for flusness with the decklid. The lower tonneau bumper (2) is used to adjust contact between the tonneau and the rear panel linkage to prevent the top assembly from moving while driving.

1. Place the convertible top in the full open position.
2. Place the decklid in the reverse position with the tonneau panel partially retracted.
3. Loosen the appropriate fastener that secures the bumper into place.
4. If the tonneau panel and decklid are not flush, adjust the upper bumper upward to lower the tonneau panel. Adjust the upper bumper downward to raise the tonneau panel.
5. Adjust the lower bumper downward or upward as necessary to keep the top from moving while driving.
6. Tighten the bumper fastener.
7. Close the decklid and verify proper alignment of the tonneau panel.
