Side Panel Weatherstrip

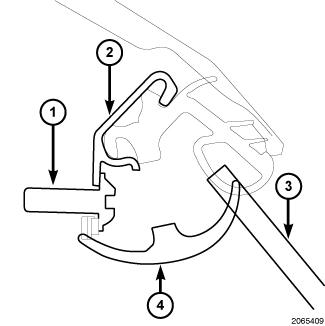

Fig 1: Side Panel Weatherstrip & Retainer
GC0123062Courtesy of CHRYSLER GROUP, LLC
  1. Open all windows.
  2. Open convertible top as needed.
  3. Carefully grab one end of the weatherstrip (4) and pull away from the retainer (2).
