Seats, Front Sedan: Seat: Removal: Removal: Sedan

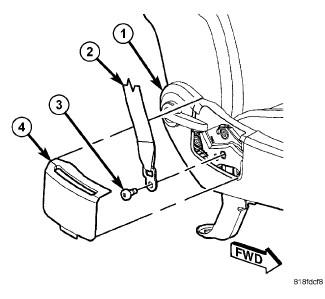

Fig 1: Seat Belt Anchor Trim
GC0123028Courtesy of CHRYSLER GROUP, LLC
  1. Slide seat forward.
  2. Remove the rear seat adjuster bolts.
  3. Using trim stick (special tool #C-4755, Trim Stick) or equivalent, remove the seat belt anchor trim (4).
  4. Remove seat belt anchor bolt (3) attaching the seat belt (2) to the seat.
    Fig 2: Front Seat & Adjuster Bolts
    GC0123029Courtesy of CHRYSLER GROUP, LLC
  5. Slide seat rearward.
  6. Remove both front seat adjuster bolts (2).

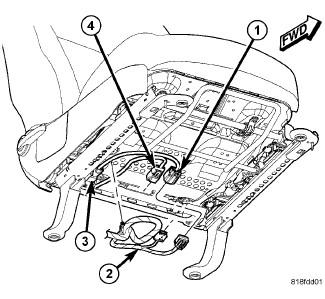

    Fig 3: Electrical Connectors
    GC0123030Courtesy of CHRYSLER GROUP, LLC
  7. Disconnect and isolate the negative battery cable.
  8. Disconnect all electrical connectors (1 and 4).
    CAUTION:

    Caution should be taken not to handle seat by adjuster release bar when removing spring loaded seat from vehicle.

  9. Remove front seat from vehicle.
