Panel, C-Pillar Trim: Removal: Removal

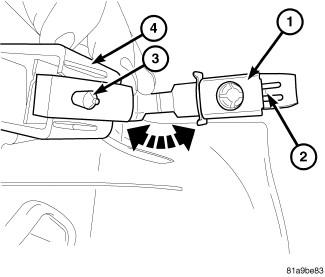

Fig 1: C-Pillar Trim Tether
GC0123001Courtesy of CHRYSLER GROUP, LLC
  1. Remove seat belt anchor bolt. Refer to RETRACTOR, SEAT BELT, REAR CENTER, REMOVAL .
  2. Using trim stick (special tool #C-4755, Trim Stick), pry the rear of panel forward disengaging clip (3).
  3. Using a flat blade screwdriver or equivalent, push down on tab (2) disengaging tab. Slide tether out of tether housing (1).

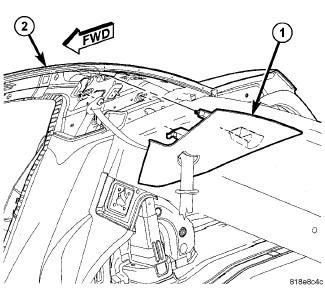

    Fig 2: Upper C Panel Trim
    GC0123002Courtesy of CHRYSLER GROUP, LLC
  4. Route seat belt through opening and remove C-pillar trim panel from vehicle.
